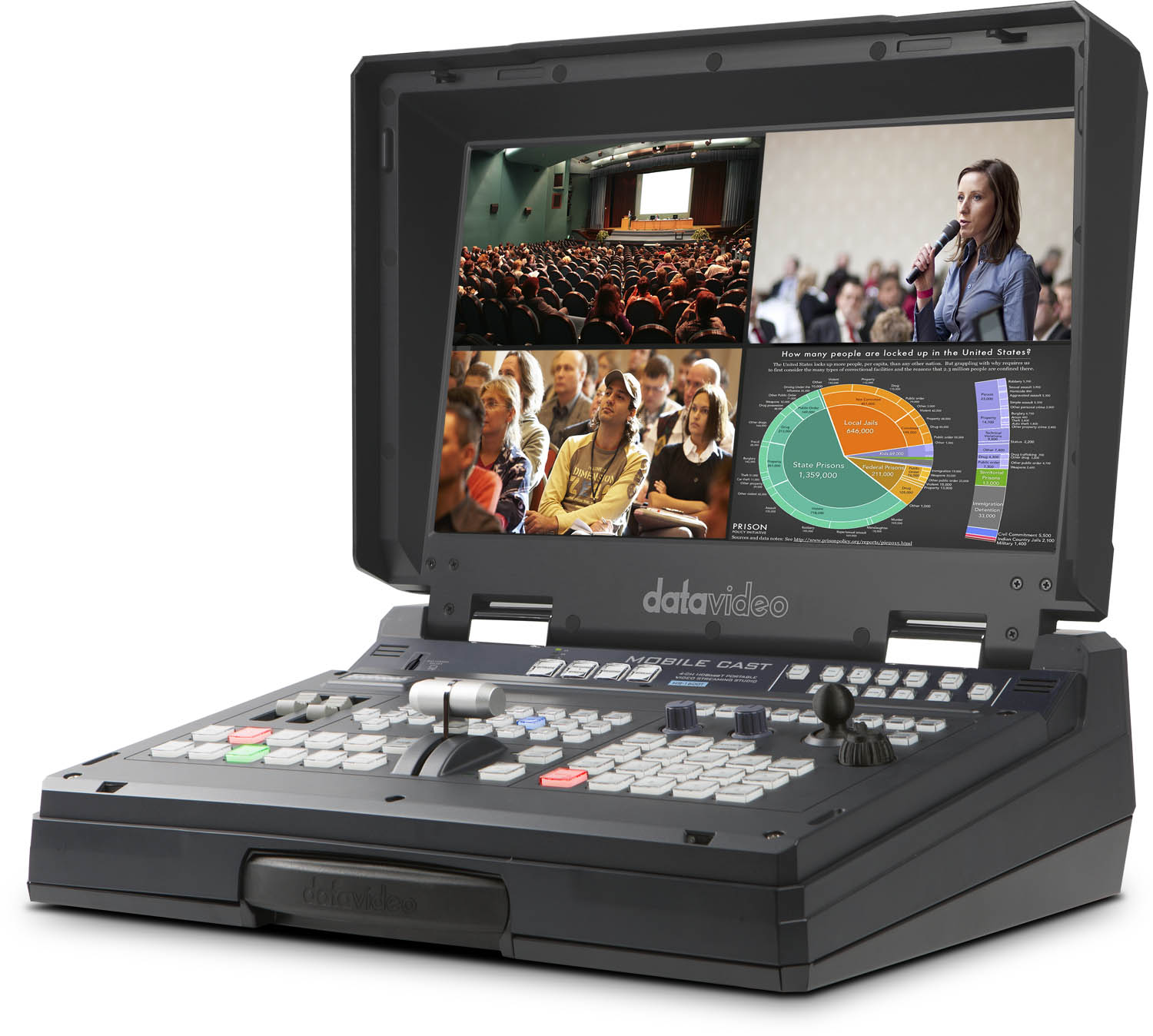

DATAVIDEO HS-1600T-Portable production unit

HS-1600T 4-Channel HD/SD HDBaseT Portable Video Streaming Studio

Video Standard

HD & SD

Video Format

1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz

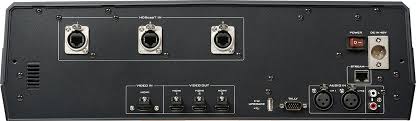

Video Input

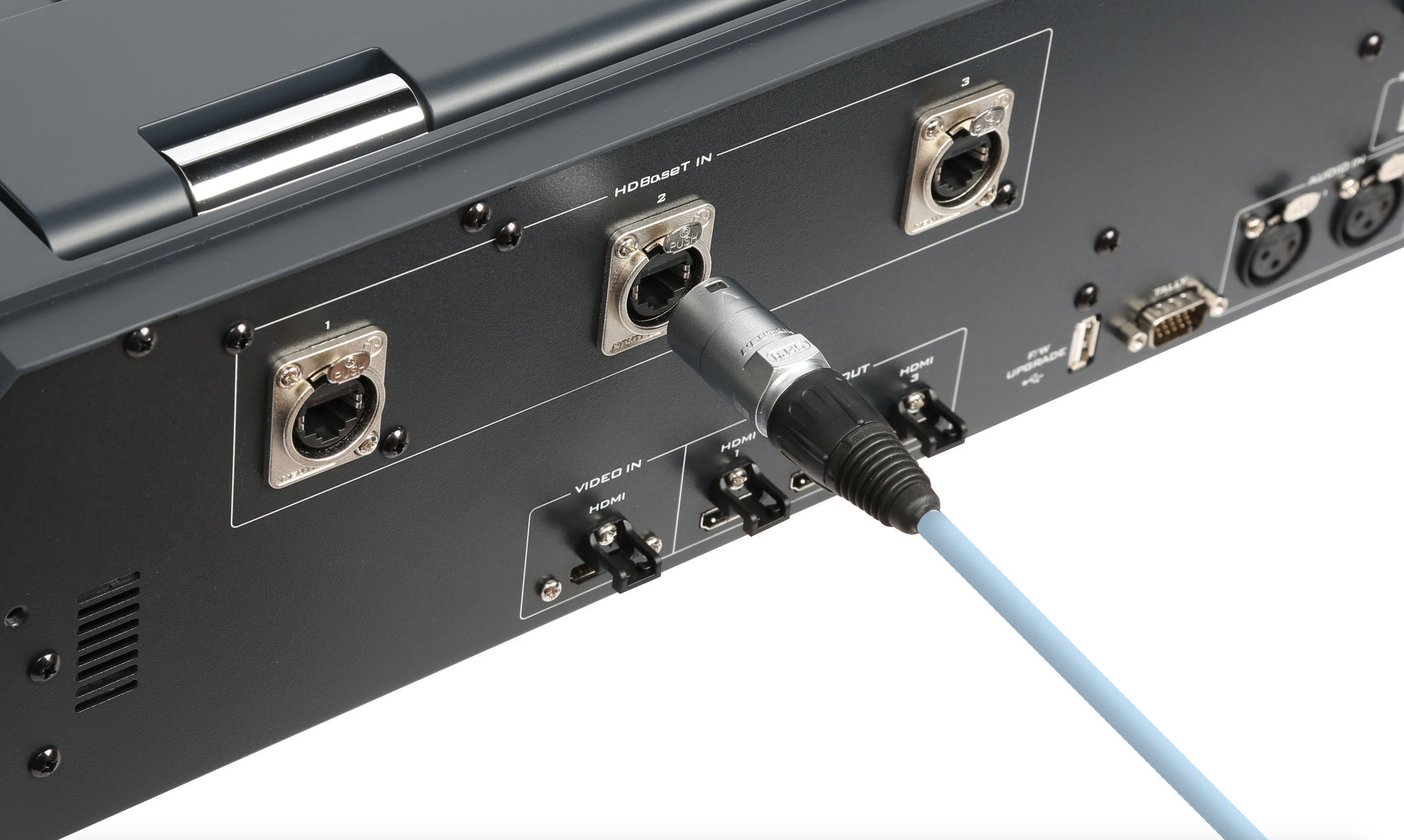

3 x HDBaseT
1 x HDMI

Computer Graphic Interface

1 via HDMI

Down-converted Output

Yes

Video Output

3 x HDMI PGM
1 x STREAM (RJ-45)

Audio Input

2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio

Audio Output

1x Stereo headphone

Embedded Audio Support

Input 2 channels, Output 2 channels

Audio Delay Calibration

N/A

A+V Switching

USK

1x USK Lumakey

DSK

N/A

Picture in Picture

1

Logo Insertion

N/A

Built-in Audio Mixer

Yes, 4 channels

Built-in Monitor Display

17.3” HD TFT LED backlit, 1920x1080 pix

Built-in Intercom & Tally

N/A

Streaming Video Encode

H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps

Streaming Audio Encode

AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit

Streaming Protocol

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)

Streaming Control

Web browser UI for configuration and control Socket commands

Recording File System

FAT, exFAT, NTFS

Recording File Format

MP4

Recording Setting Control

Web UI for system configuration and control

Special Features

Built-in camera controller

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

17.2 Lbs (7.8 kg), Reinforce Plastic Case

Power

DC 48V, 4.16A

Operating Temp. Range

0~40 °C

Options

CB-60/61/62

What's in the Box

Content

1 x HS-1600T Product
1 x AD Switch DC 48V with AC Cord
1 x Thank You Card
3 x Ethernet Cables (55in. / 140cm) [for testing only]

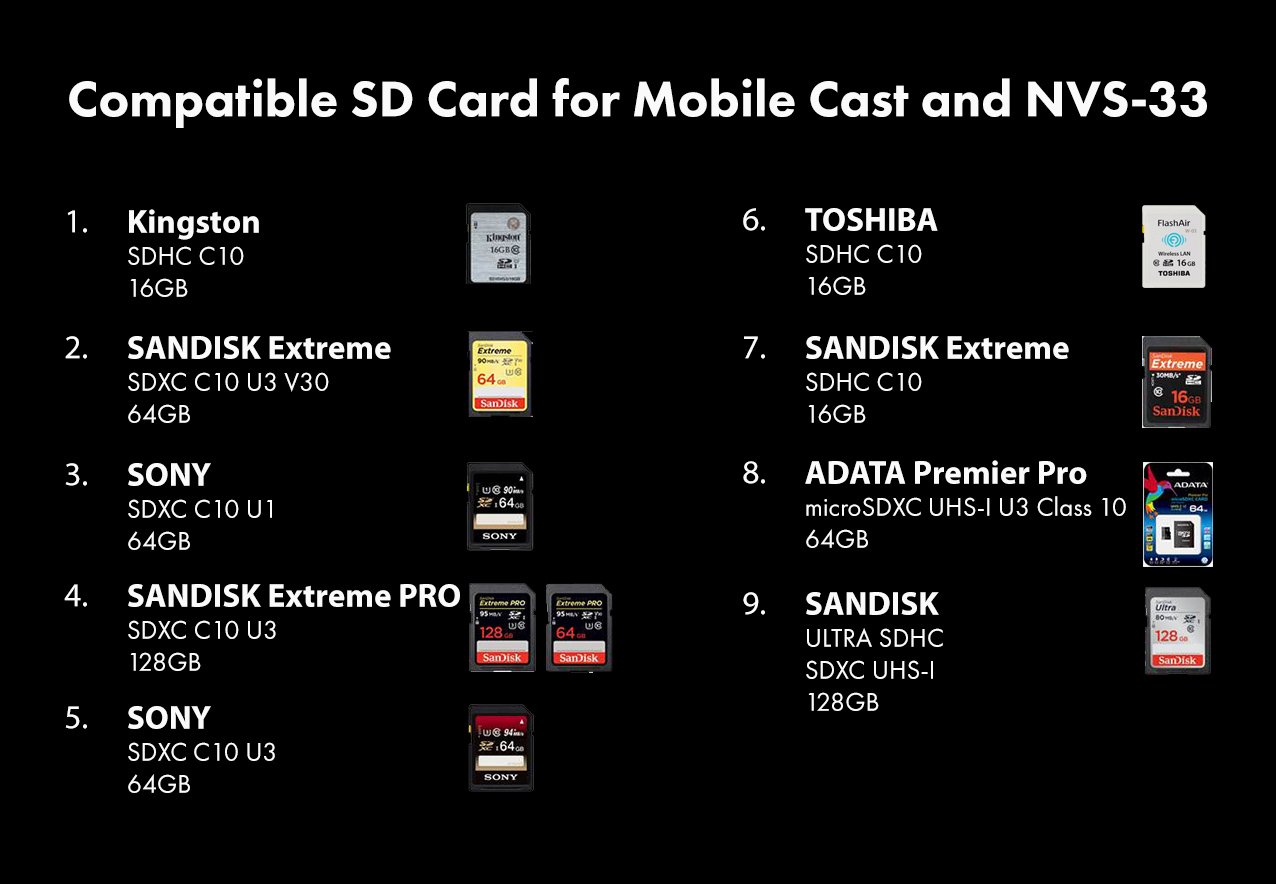

Drive Compatibility

For a list of verified compatible drives, visit the
