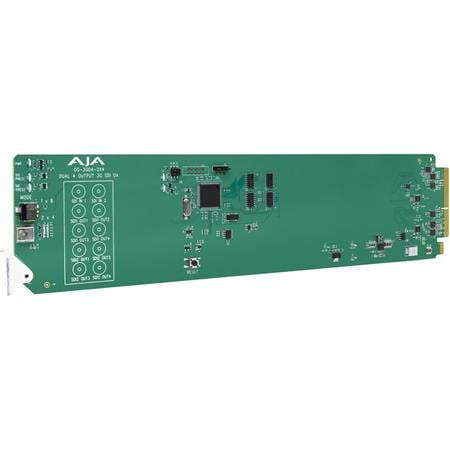

Aja OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder
$999.00
Tags:
3G-SDI 8-Channel 24-bit AES Embedder/Disembedder, DashBoard Support The OG-3G-AMD is a state of the art, openGear compatible, 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Simple user controls allow channel enabling and mapping.
Product Details
SPECIFICATION
Video Formats
- 1x 3 Gb SDI (level A or B)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i
- (SD) 525i
- 1x 3 Gb SDI (level A or B)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i
- (SD) 525i
Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 1x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 1x 3G-SDI BNC, SMPTE-259/292/424
Audio Input Digital
- 4x BNC, AES3id
- 4x BNC, AES3id
Audio Output Digital
- 4x BNC, AES3id
- 4x BNC, AES3id
Audio Data Formats
- AES3 2003
- SMPTE ST 337
- AES3 2003
- SMPTE ST 337
Digital Audio Converters
- 24-bit
- 24-bit
Embedded Audio
- SDI embedded audio, 24-bit, 16-Channel*
- SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
- SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
*2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
- SDI embedded audio, 24-bit, 16-Channel*
- SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
- SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
*2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
Embed Path Audio Latency
(Time measured between audio input and video output connector):
- 1500 usec (SRC ON)
- 400 usec (SRC OFF)
(Time measured between audio input and video output connector):
- 1500 usec (SRC ON)
- 400 usec (SRC OFF)
Disembed Path Audio Latency
(Time measured between video input and audio output connector):
- 210 usec
(Time measured between video input and audio output connector):
- 210 usec
User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
- External DIP switch
- openGear DashBoard network control software via Windows, macOS or Linux
- External DIP switch
Size (w x d x h)
- openGear standard form factor, front slot and rear card. Two slots required for each card.
- openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
- 0.5 lb (0.3 kg)
- 0.5 lb (0.3 kg)
Power
- openGear frame compatible, 5.0 watts max per card
- openGear frame compatible, 5.0 watts max per card
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
