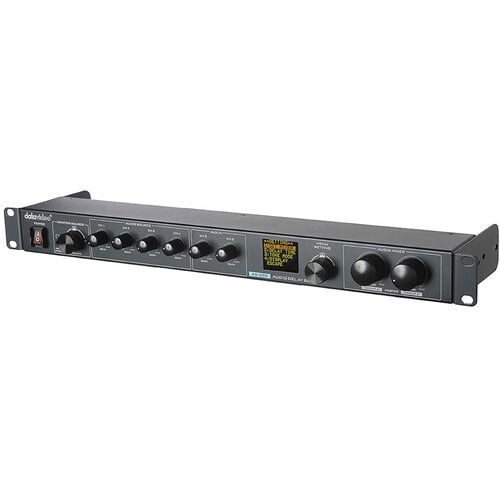

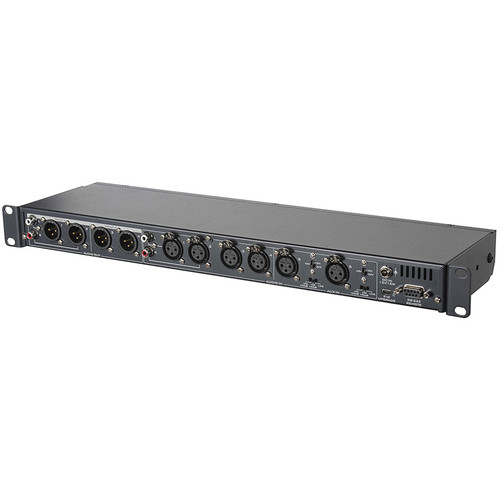

DATAVIDEO AD-200 - 6-Channel Audio Delay/Mixer with Level Adjustment (open box)
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
SPECIFICATION
Model Number
AD-200
Audio Input
6x XLR, 2x RCA
Audio Output
4x XLR, 2x RCA, 1x 3.5mm
Audio Indicator
1.77" Color OLED
Audio Delay
Up to 3000ms
Audio Sample Rates
48 KHz
Special Feature
Audio Delay and Mix, delay by channel
Chassis
2 units, rack-mount mainframe
Power
DC 12V 19W (front)
DC 12V 16W (rear)
Dimension (LxWxH)
440 x 126 x 42 mm
Weight
1.8 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x AD-200 main unit
1 x AD-200 control unit
1 x AD Switch DC 12V
1 x D-SUB cable, Male to MALE,Cable
1 x 3.5mm Stereo Cable, 1.2m
4 x 1U rack kit
16 x Screws M4 x 8mm
