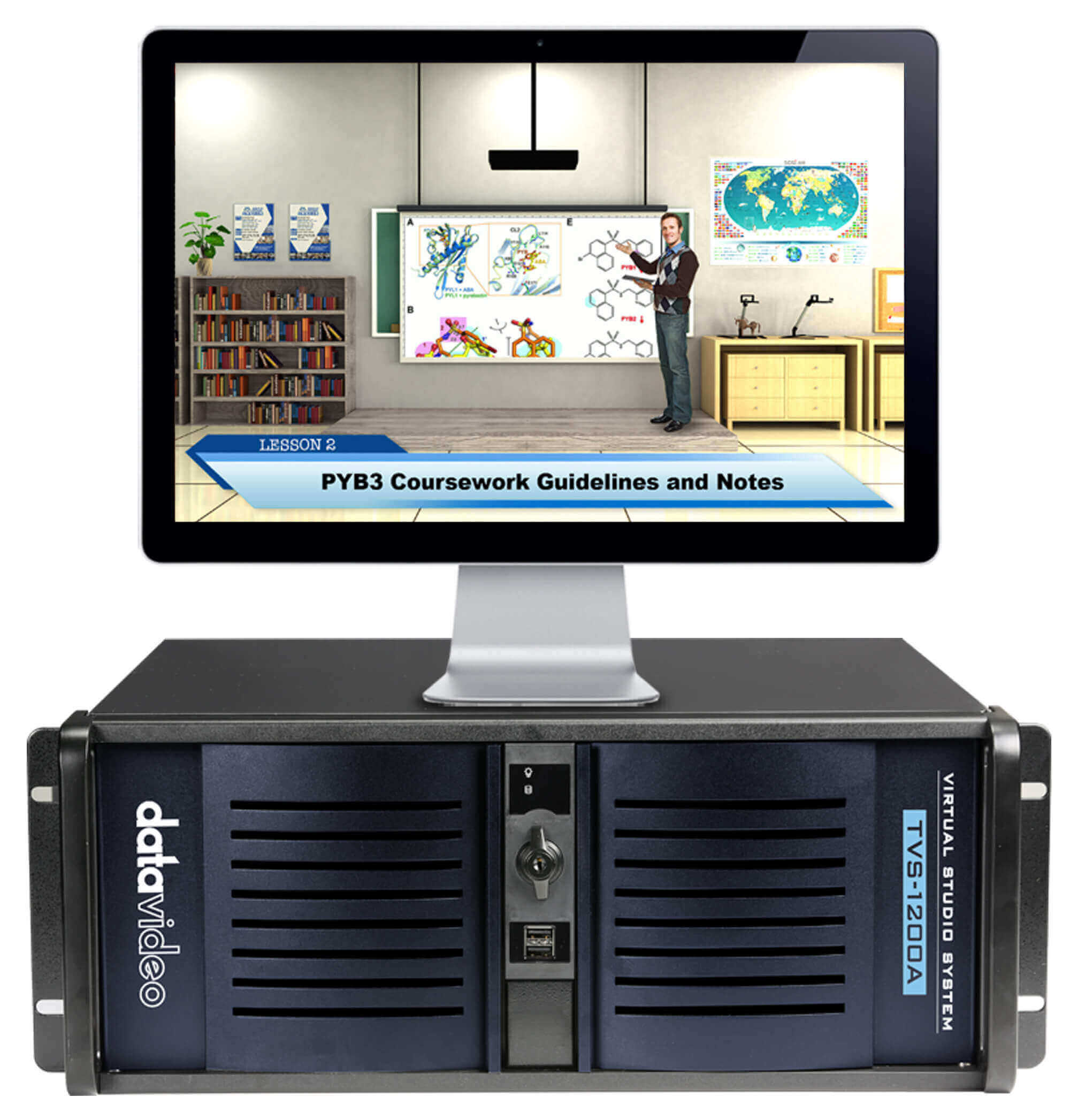

DATAVIDEO TVS-1200A - Trackless Virtual Studio System - SDI Input
Specifications
Tracking/Trackless
Trackless
Video Input
3G-SDI x 2 + AUX-HDMI x 1
Video Output
3G-SDI x 2 + AUX-HDMI x 1
Video Input/Output Format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Audio Input
Mini Phone Jack x 2
HDMI audio embedded x 1
SDI audio embedded x 2
Operation Monitor
DP x1, HDMI x1, DVI x2 (Choose 3 from 4)
Tally
Yes
Downstream Key
2
Media
2(DDR)
Virtual Studio
200 & Unlimited download from datavideovirtualset.com
Still Picture
2
Still Text
2
Keyer
Chromakey / Luminance key x 2
Recording
H.264 / MPEG-2
Live Streaming Protocols
TS HTTP / TS RTP / TS UDP / TS RTSP / FLV HTTP / FLV RTMP
Hard Disk Capacity
1TB+240G SSD
Dimension (LxWxH)
480 x 470 x 178mm
Weight
15.21 kg
Operating Temp. Range
0~40 °C
Power
AC 100-240V 550W
What's in the Box
1 x TVS-1200A Main Unit
1 x Power AC Cord
1 x 2.5'' HDD Box (with SATA to USB cable)
1 x USB Mouse
2 x Labels
1 x TVS-1200A Thank You Card
4 x screws M3 x 4
1 x RMC-220 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)
1 x 802.11AC Antenna / or USB dongle
