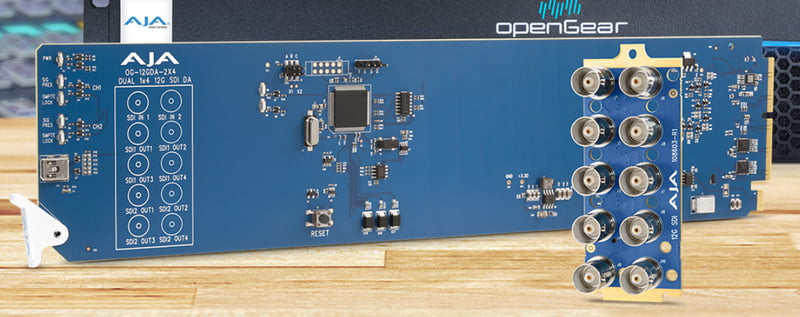

AJA Opengear Dual 1x4 12G-SDI Distribution Amplifier

Video Formats

• 150 Mbps - 12 Gbps, format agnostic

---

Video Input Digital

• 2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

---

Video Output Digital

8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, noninverting

---

Cable Equalization

(Belden 1694A coax)

• 12 Gbps, 45m
• 6 Gbps, 90m
• 3 Gbps, 140m
• 1.5 Gbps, 185m
• 270 Mbps, 365m

---

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked

---

User Interface

• openGear DashBoard network control software via Windows, macOS or Linux

---

Size (w x d x h)

• openGear standard form factor, front slot and rear card
• Two slots required for each card

---

Weight

• 0.5 lb (0.3 kg)

---

Power

• openGear frame compatible, 4.5 watts max per card

---

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
