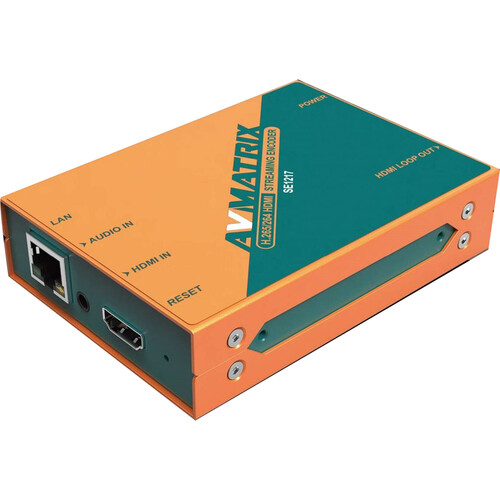

AvMatrix H.265/ H.264 HDMI STREAMING ENCODER
SE1217 H.265/264 HDMI Streaming Encoder from AV Matrix supports both LAN and WAN streaming. This encoder features simultaneous main– and sub–streaming and compatibility with all major streaming platforms.
Input
Video Input Connectors | 1 x HDMI |
Input Video Format | HDMI |
Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog |
Input Audio Format | Analog |
Embedded Audio Input | HDMI |
Output
Video Output Connectors | 1 x HDMI (Loop Output) |
Output Video Format | HDMI |
Audio Output Connectors | None |
Embedded Audio Output | HDMI |
Connectivity
Other I/O | 1 x RJ45 LAN |
Expansion Slots | None |
IP Streaming
Video IP Encoding | H.264, H.265: 640 x 360 to 1920 x 1080 at 60p |
Audio IP Encoding | AAC, MPEG Layer 2, G.711 |
Hardware
Wi-Fi Support | Yes |
Power
Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
Power Consumption | 5 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
General
Dimensions | 4.1 x 3 x 1" / 104 x 75.5 x 24.5 mm |
Weight | 10.9 oz / 310 g |
Packaging Info
Package Weight | 0.65 kg |
Box Dimensions (LxWxH) | 5.5 x 5.45 x 3" |
