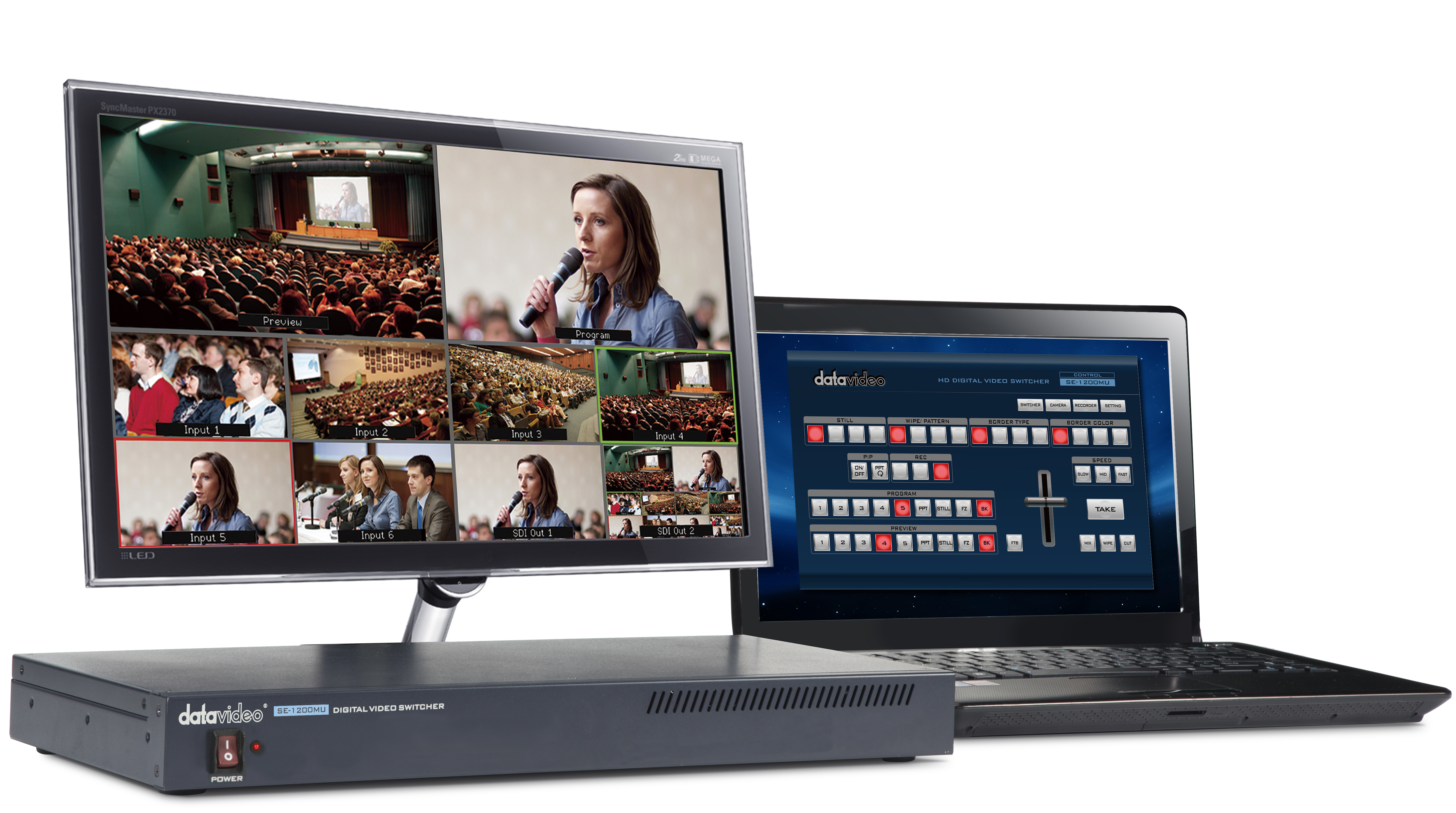

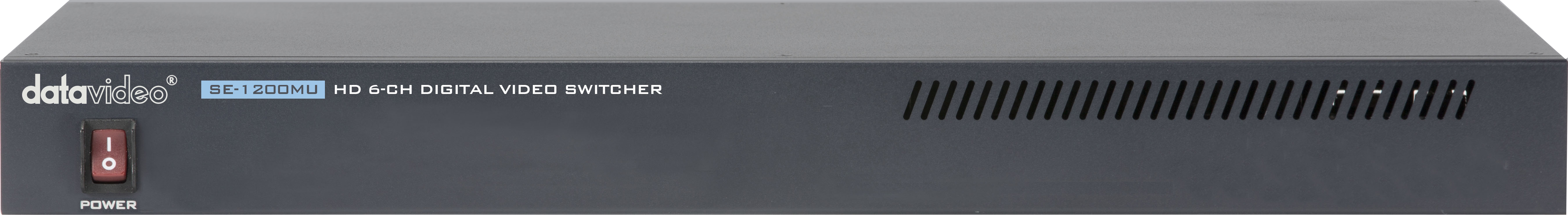

DATAVIDEO SE-1200MU - 6 Input Rackmount HD Switcher

Video Standard

HD

Video Format

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4

Input Routable / Crosspoint

All 6, repeatable

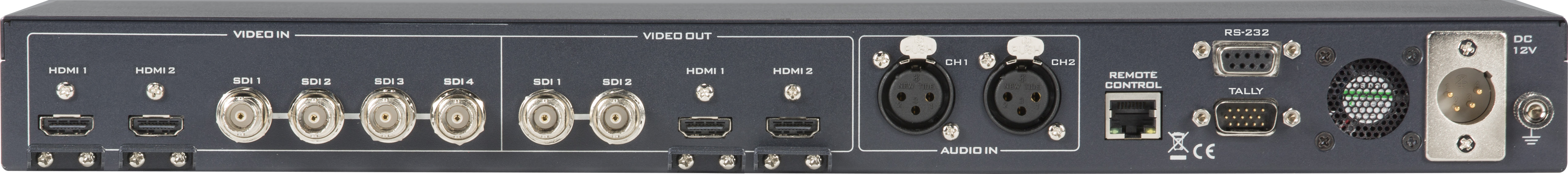

Video Input

4x HD-SDI
2x HDMI (RGB/YUV, 1080i/1080p/720p)

Computer Graphic Interface

2 via HDMI

Video Output

2x HD-SDI
2x HDMI assignable:
PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6

Built-in Multi-view Monitoring Out

HDMI & SDI assignable, Ethernet (MJPEG)

Analogue Audio Input

2x Balanced XLR

Analogue Audio Output

N/A

Digital Embedded Audio Support

Input 2 channels, Output 2 channels

A+V Switching

Yes

Chromakey

2

USK

2x Keyer support Chromakey/ Linear/ Luma Key

DSK

2x DSK support Lumakey/ Linear key (Key / Fill)

Picture in Picture

1

Still Store

500

Effects

FTB, Cut, 32 Wipe with

Transition Preview

Full transitions preview

Sync / Reference In/Out

Built-in Genlock (internal)

Tally Output

1x D-sub 15pin, dual color

PC Remote Control

Ethernet (free Window software)
RS-422/ RS-232

Special Features

Motion JPEG Multi-view streaming
(120 memory preset, BGD Transition on/off option)
Free Virtual Set and Stinger transition included

Chassis

2 units, 1RU rack-mount mainframe

Dimension (LxWxH)

440 x 215 x 49 mm

Weight

1.5 kg

Power

DC 12V, 19W

Operating Temp. Range

0~40 °C

Options

CB-46/47/60/61/62

What's in the box

1 x SE-1200MU product
1 x AD Switch DC 12V
1 x DB9P TO DB9P Cable
1 x Thank You Card
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
