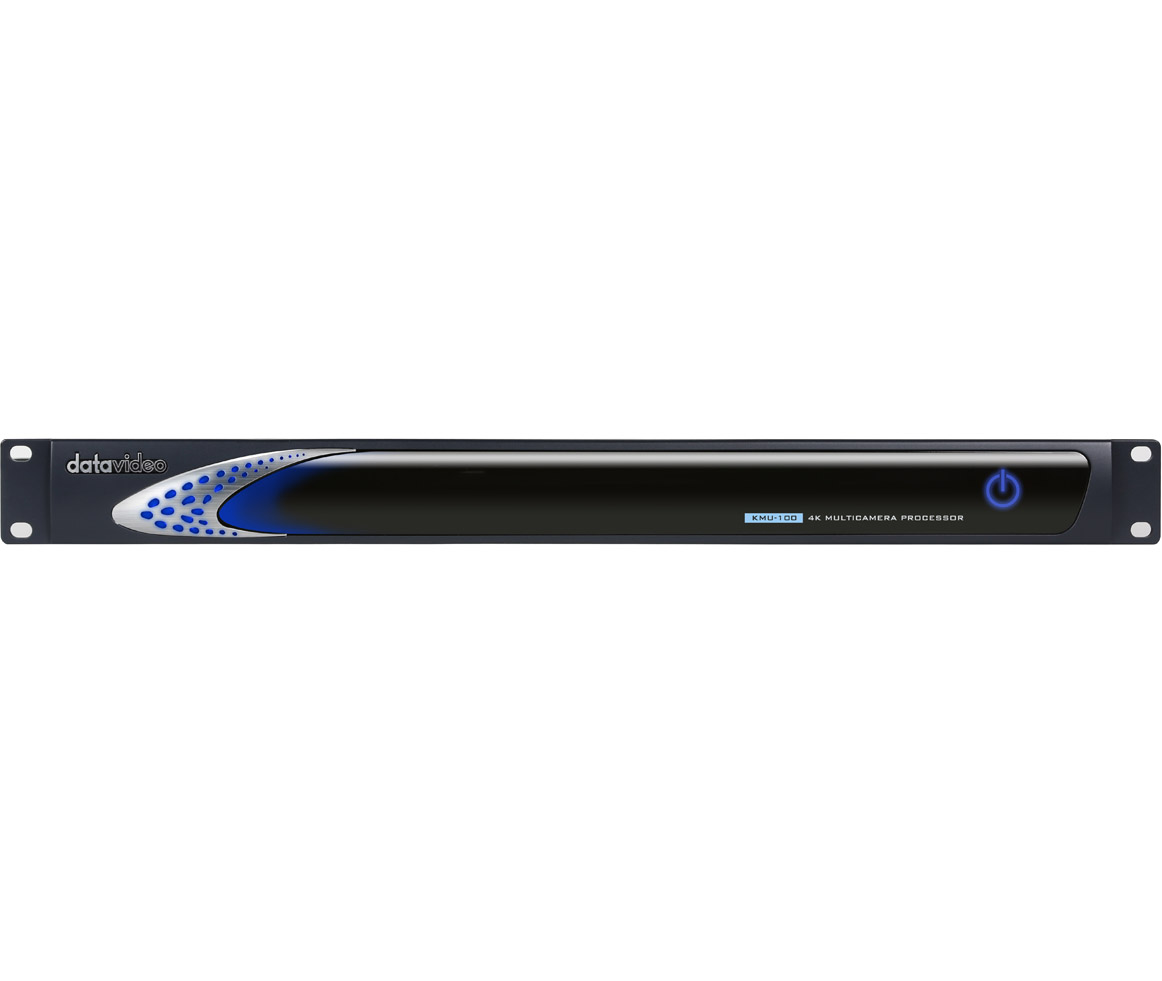

DATAVIDEO KMU-100 - 4K Multisource generator upto 3Gb/s

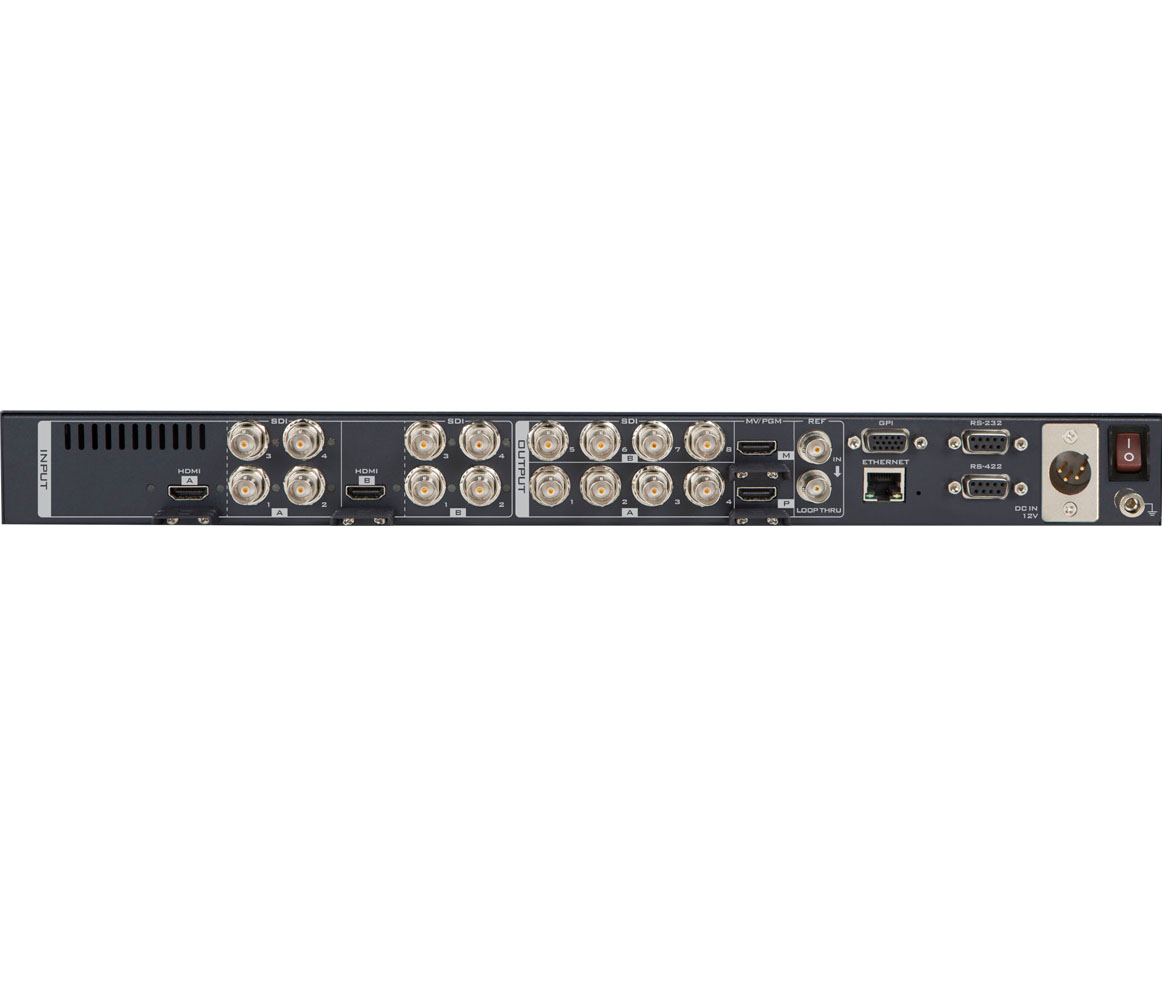

Video Input

2 sets of SDI Input:
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2

2 x HDMI Input:
each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2

Supported Video Input Resolution

3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 50/59.94/60

Video Output

2 sets of SDI output:
each set of 4x SDI
1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2

Support Video Output Resolution

1080p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
625/50i PAL, 525/59.94i NTSC

Multiview Out

HDMI 1.4 x2

Multiview Mode

Preview, Motion, Quad

Audio Input

SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Ch embedde in SD, HD and Ultra HD 4K

Audio Output

SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K

Audio Sampling

Television standard sample rate of 48 kHz at 24-bit

Reference Input

Blackburst, Tri-level

Control Interface

Ethernet RJ45 for control, configuration and updates
RS-232 x 1 input for controlling configuration
RS-422 x 1 input with external keyboard support
GPIO x1

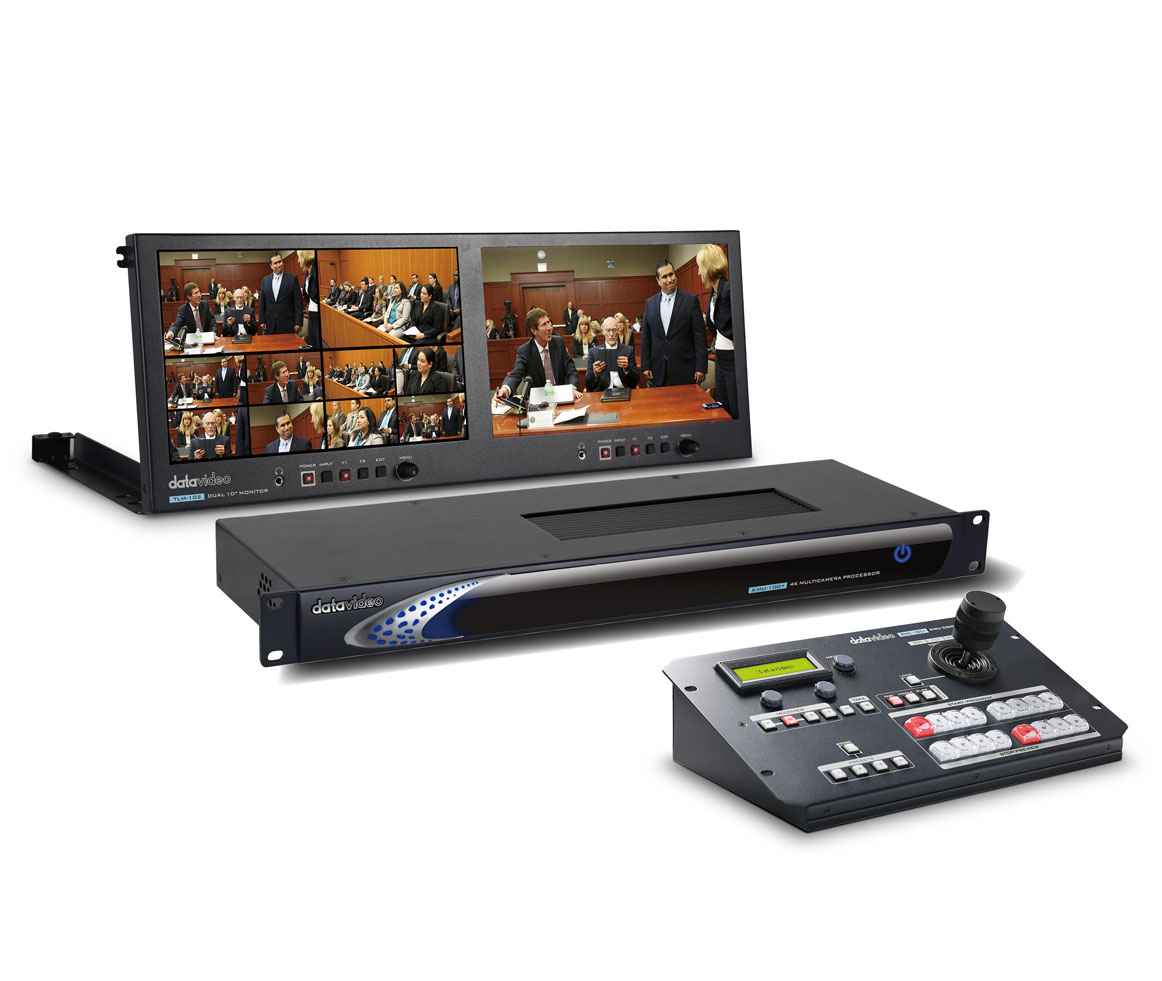

Controller

RMC-185/RMC-185+

Dimension (LxWxH)

484 x 192 x 49 mm

Weight

3.2 kg

Power Supply

DC 12V, 5A

Operating Temp. Range

0~40 °C

What's in the box

1 x KMU-100 Main Unit
1 x AD Switch DC 12V with AC Cord
4 x Screw
1 x Thank You Card
