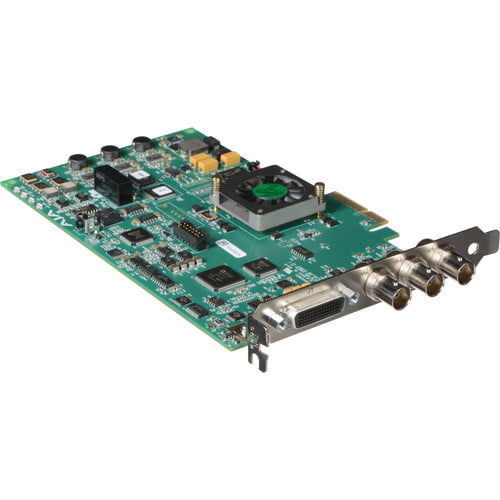

AJA KONA-LHE R0-S00 HD-SDI/Analog Video Capture and Playback PCI Card/board only

Video Formats

• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Video Input Digital

• 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
• 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit

Video Output Digital

• 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
• 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit

Video Input Analog

• Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
• NTSC, NTSCJ, PAL
• Component (3x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit A/D, 8x oversampling
• +/- .2 dB to 5.0 MHz Y Frequency Response
• +/- .2 dB to 1 MHz C Frequency Response
• .5% 2T pulse response
• <1% Diff Phase
• <1% Diff Gain
• <1 ns Y/C delay inequity

Video Output Analog

• Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
• NTSC, NTSCJ, PAL
• Component (3 x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling
• +/- .2 dB to 5.0 MHz Y Frequency Response
• +/- .2 dB to 1 MHz C Frequency Response
• .5% 2T pulse response
• <1% Diff Phase
• <1% Diff Gain
• <1 ns Y/C delay inequity

Audio Input Digital

• 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Audio Input Analog

• 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
• +24 dBu full scale digital
• +/- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital

• 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz or 96 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Audio Output Analog

• 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
• +24 dBu full scale digital (0 dBFS)
• +/- 0.2 dB 20 Hz to 20 kHz frequency response
• 2-Channel unbalanced output (via 2x RCA jacks on optional KL-Box)

Down-Conversion

• Hardware 10-bit
• Anamorphic: fullscreen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

Reference Input

• Analog Color Black (1V) or Composite Sync (2 or 4V)
• Looping
• 75 ohms on optional KL-Box, terminated on supplied breakout cable

Electrical Interface

• 4-lane PCIe 1.0

Machine Control

• RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
• 9-pin D-connector pinout is as follows:

Size (w x d x h)

• 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)

Weight

• 0.7 lb (0.4 kg)

Power

• 13W typical, 15W maximum

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
