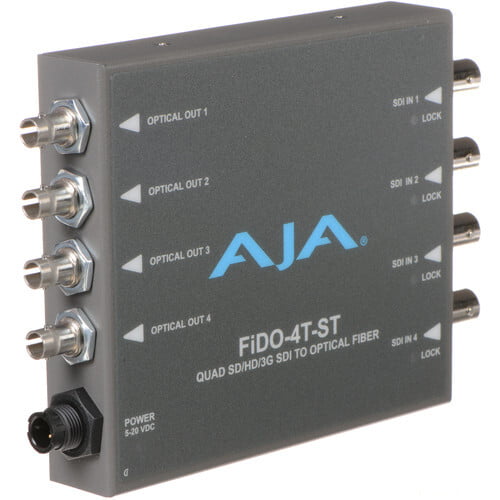

AJA FiDO-4T 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter
$1,945.00
Tags:
FiDO-4T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.
Product Details
SPECIFICATION
Video Format
- 150 Mbps - 3 Gbps, format agnostic
Video Input Digital
- 4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
Video Output Digital
- 4-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
- Nominal Wavelength: 1310 nm
- Optical Power: -5dBm (min), 0dBm (max)
- Extinction Ratio: 7.5dB (Typ)
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 4.02" x 0.85" (117 x 102.11 x 21.6mm)
Weight
- 0.8 lb (0.4 kg)
Power
- 5 watts max
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
