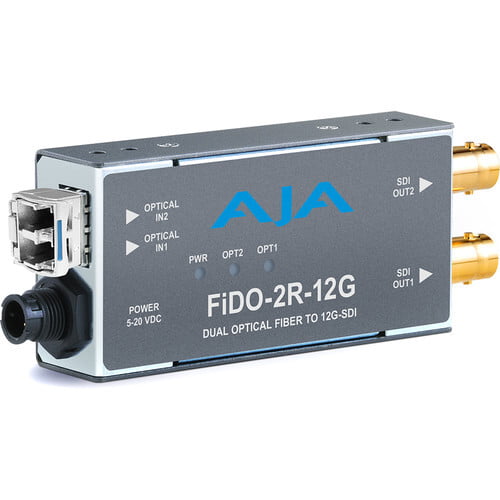

Aja OG-FIDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver

Video Formats

270 Mbps - 12 Gbps, format agnostic

Video Input Digital

2-channel independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082

Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)

Optical Sensitivity: -9 dBm (min 12 Gbps), -10 dBm (min 3 Gbps)

Overload Power: -2 dBm (min)

Video Output Digital

2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select

All other rates are passed through and not reclocked

Size (w x d x h)

4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

Weight

0.4 lb (0.2 kg)

Power

2 watts (max)

Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
