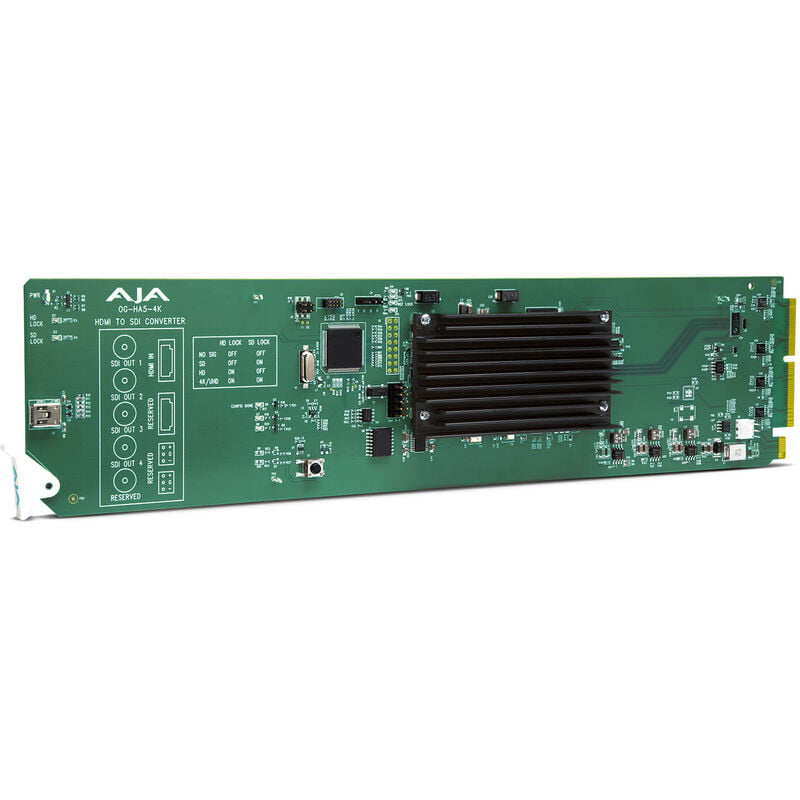

Aja openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion

Video Formats

(4K) 4096 x 2160p

(UltraHD) 3840 x 2160p

(2K) 2048 x 1080p

(HD) 1920 x 1080p

(HD) 1920 x 1080i

(HD) 1280 x 720p

(SD) 720 x 576p

(SD) 720 x 576i

(SD) 720 x 480p

(SD) 720 x 480i

Note: Raster and Frame Rate Dependent, please see OG-HA5-4K Video Formats in Documents and Manual.

Video Input Digital

1x HDMI Type A connector, HDMI v2.0b

HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b

HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic

YCbCr 4:2:2/4:4:4/4:2:0

RGB 4:4:4, SMPTE or Full level

8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

(SD) 720 x 576p 50

(SD) 720 x 576i 50

(SD) 720 x 480p 59.94

(SD) 720 x 480i 59.94

HDCP Decryption

Not supported. By definition, SDI outputs are unencrypted.

Video Output Digital

4x 3G-SDI BNC, SMPTE-259/292/424

YCbCr 4:2:2/4:4:4

RGB 4:4:4, SMPTE or Full level

10-bit

Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping

4x 3 Gb SDI (Level A or B Dual Link

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30

4x 1.5 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

2x 3 Gb SDI (Level B Dual Stream)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372

(HD) 1920 x 1080p 50, 59.94, 60

1x 3 Gb SDI (Level A or B Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p** 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i 50

(SD) 525i 59.94

*PsF is Level B Dual Link
**1280 x 720p is Level A Only

Audio Pass-Through Formats

PCM

Dolby Digital (AC-3)

Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

HDMI embedded audio, 24-bit, 8-channel

Audio Output Digital

SDI embedded audio, 24-bit, 8-channel

User Interface

openGear DashBoard network control software via Windows, macOS, or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card.

Two slots required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 10.0 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
