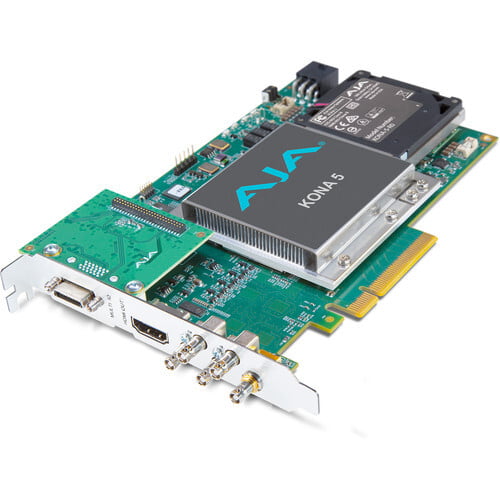

AJA KONA 5 Ultimate Performance

Video Formats

• (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Video Inputs Digital

• 12G-SDI, SMPTE-2082, 12-bit*, 10-bit
• 6G-SDI, SMPTE-2081, 10-bit
• 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
• 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
• 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: KONA 5 SDI connectors are HD BNC

Video Outputs Digital

• 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
• 6G-SDI*, SMPTE-2081, 10-bit
• 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
• 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
• 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• HDMI v2.0
  • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
  • 4K, UltraHD, 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: KONA 5 SDI connectors are HD BNC

HDR

• SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
• HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
• HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

SDI I/O

• SDI connections are bidirectional
  • 2K/HD, capture and monitoring is simultaneous
  • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
  • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
  • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

• 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Outputs Digital

• 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Downstream Keyer

• Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

• Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)
• Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

• LTC timecode input and output (via 2x BNC on breakout cable)
• LTC timecode input (via 2-pin header on PCIe card)
• LTC timecode input (via HD-BNC at PCIe bracket)

Electrical Interface

• 8-lane PCIe 3.0

Machine Control

• RS-422, Sony 9-pin protocol (via breakout cable)
• 9-pin D-connector pinout is as follows:

Noise

• <50dBA (A-weighted at 1m in free air)

Size (w x d x h)

• 0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)

Weight

• PCIe Card:  0.6 lbs (0.3 kg)
• Cables (all combined): 1.3 lbs (0.6 kg)

Power

• 28W typical, 35W maximum via ATX power.
• PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other KONA cards, KONA 5 uses PCIe power from a 6 pin ATX connector, rather than the PCIe slot.

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
