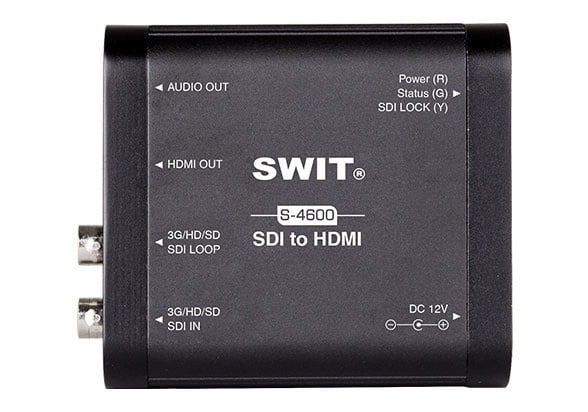

Swit S-4600 SDI to HDMI Converter
$228.00
Tags:
The S-4600 Converter SWIT is a portable 3G-SDI to HDMI converter. It converts the 3G-SDI signal, with its embedded audio, to HDMI output. The S-4600 supports 3G-SDI loop through output and SDI embedded audio via a 3.5mm analog audio output.
Product Details
SPECIFICATION
Input / Output
| Input | 1 x 3G/HD/SD-SDI via BNC |
| Output | 1 x 3G/HD/SD-SDI via BNC 1 x HDMI 1 x analog audio via 3.5 mm connector |
Format Support
| SDI | SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080PSF (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) |
| HDMI | 480i 576i 720p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| Audio | 48 kHz sync |
General
| LED Indicators | Power: Red HDMI Output Status: Green SDI Input Lock: Yellow |
| Power Consumption | ≤3 W |
| Operating Voltage | 6 to 18 VDC |
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| Operating Humidity | 10 to 90% |
| Dimensions | 2.9 x 2.9 x 1.1" (7.3 x 7.4 x 2.9 cm) |
| Weight | 4.9 oz (138.5 g) |
Packaging Info
| Package Weight | 0.5 KG |
| Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.1" |
