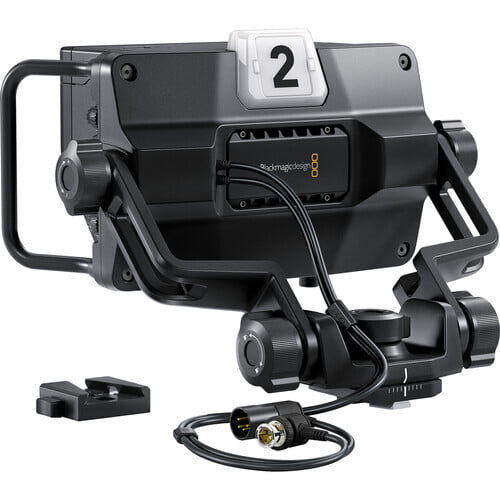

Blackmagic Design URSA Studio Viewfinder G2
The Blackmagic URSA Broadcast G2 has 2 different viewfinder options, depending on how you need to use the camera.
Specification
Display
Color/Monochrome | Color |
Panel Type | TFT LCD |
Display Size | 7.0" / 17.8 cm |
Screen Resolution | 1920 x 1200 |
Touchscreen | No |
Maximum Brightness | 2000 cd/m2 |
Image Controls | False Color, Focus Assist, Focus Peaking, Screen Markers |
I/O
Video | 1 x BNC (3G-SDI) Input |
Video Format | SDI (10-Bit 4:2:2 YUV) |
Power | 1 x 4-Pin XLR (12 VDC) Input |
Other I/O | 1 x USB 2.0 (USB Type-C) Input |
Power
DC Input Power | 12 VDC |
Environmental
Operating Humidity | 0 to 90% (Non-Condensing) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Mounting | 1 x V-Lock |
Dimensions | 13.03 x 11.97" / 33.1 x 30.4 cm |
Weight | 5.93 lb / 2.69 kg |
