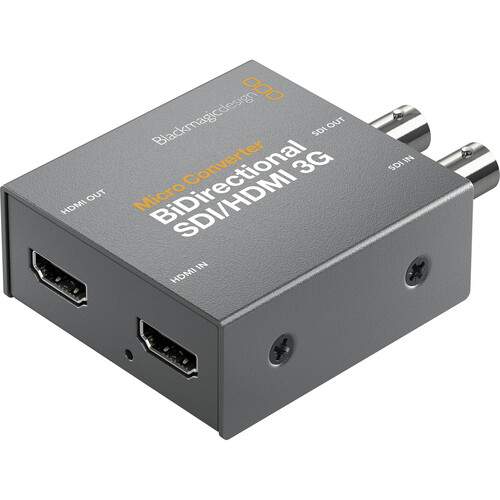

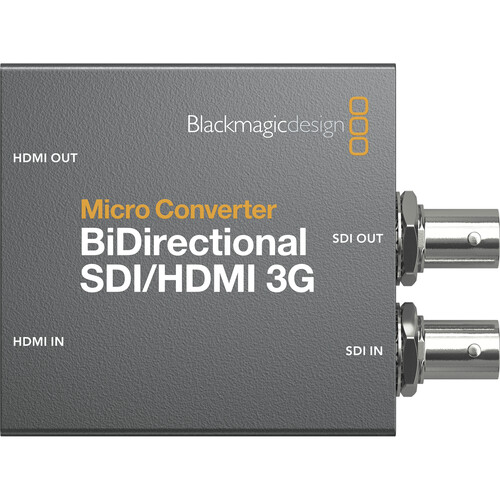

Blackmagic Design Micro Converter BiDirect SDI/HDMI 3G

Video Input Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)

Input Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps

Audio Input Connectors

None

Embedded Audio Input

HDMI
SDI

Video Output Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps

Audio Output Connectors

None

Embedded Audio Output

HDMI
SDI

Video Standard Compliance

SMPTE 259M/292M/296M/424M/425M-A/425M-B

HDCP Support

Version 2.2

Other I/O

1 x USB Type-C Input

Expansion Slots

None

Tally Light

Yes

OS Compatibility

macOS 10.14.15 or Later
Windows 10

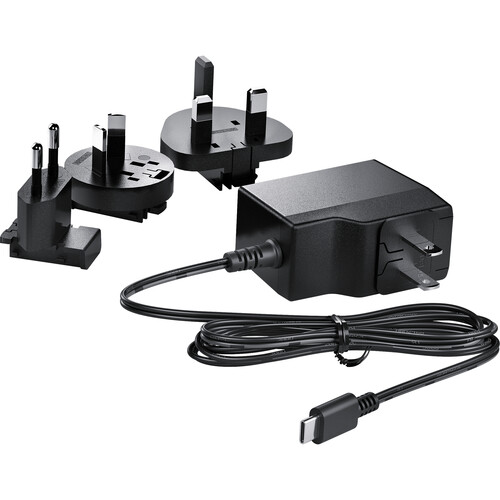

Power Connector

1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption

2.5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

Dimensions

3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm

Weight

6.13 oz / 174 g

Warranty Length

Limited 1-Year Warranty
