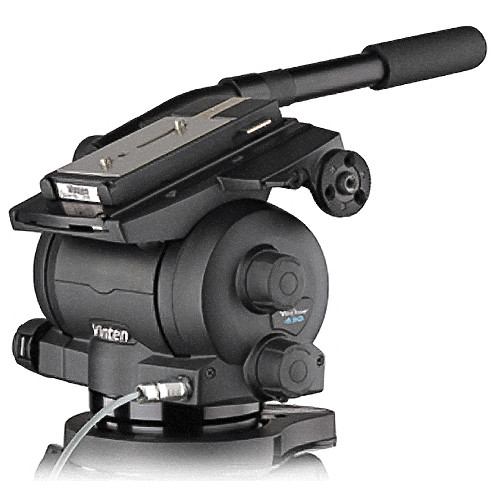

Vinten Vector 430i Head

Height:

20 cm / 7.9 "

Length:

20 cm / 7.9 "

Width:

28.5 cm / 11.2 "

Weight:

12.1 kg / 26.7 lbs including wedge adaptor and pan bar

Capacity Range:

10 to 43 kg / 22 to 94.8 lbs

Tilt range

@ 37 kg / 81.6 lbs ±90°

Tilt range

@ 43 kg / 94.8 lbs ±40°

Pan Resolution:

1.48 million counts per 360°

Tilt Resolution:

1.48 million counts per 360°

Encoder Power Requirements:

5 volts dc ±10% [supplied by the VRI box]

Platform Adjustment:

+5.5 to -10.6 cm / +2.2 to -4.2 "

Pan Bar:

Single telescopic

Camera Fixing:

EFP Quickfit Automatic Adaptor [3761-3]

Levelling Bubble:

Illuminated

Drag Knobs:

Backlit and calibrated

Counterbalance:

Fully variable with digital readout

Base Fixing:

4 bolt flat with Quickfix groove

Colour:

Black
