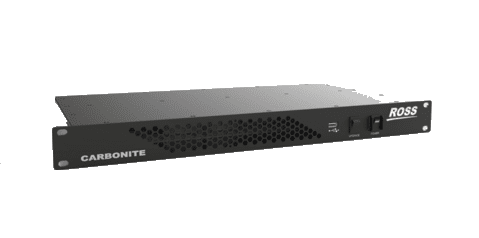

Ross Video CBF-109 Carbonite Black Solo 1 RU HD/SD Switcher Engine

Video Inputs

6 x SDI, BNC
3 x HDMI

Video Outputs

5 x SDI, BNC
1 x HDMI

Signal Format

3G:
1080p: 60/59.94/50

HD:
1080p: 29.97
1080PsF: 25/23.98
1080i: 59.94/50
720p: 59.94/50

SD:
576i: 50
480i: 59.94

Signal Processing

10-bit

ME Number

1 x ME
2 x MiniME

SDI Input

SMPTE 424M/292M/259M serial digital (non-looping)

HDMI Input

Standard: HDMI 1.4

Maximum Cable Length Supported

High-Speed Cable: 33' (10 m)

Reference Input

SD: Analog black
HD: Tri-level sync
Non-terminating, looping

SDI Output

10-bit SMPTE 424M/292M/259M serial digital

HDMI Output

Standard: HDMI 1.4

Maximum Cable Length Supported

High-Speed Cable: 33' (10 m)

Power Requirement

AC 100–240 V, 50 / 60 Hz, 88 W

Operating Temperature

32–104°F (0–40°C)

Dimensions (WxDxH)

18.98 x 10.0 x 1.63" (48.2 x 25.4 x 4.14 cm)

Weight

Not specified by manufacturer

Package Weight

Box Dimensions (LxWxH)

23.9 x 16.4 x 9.8"
