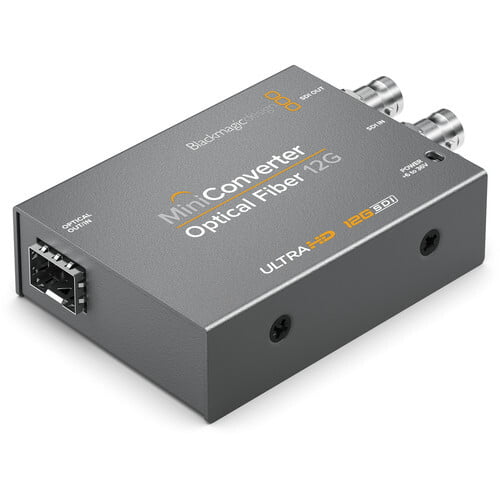

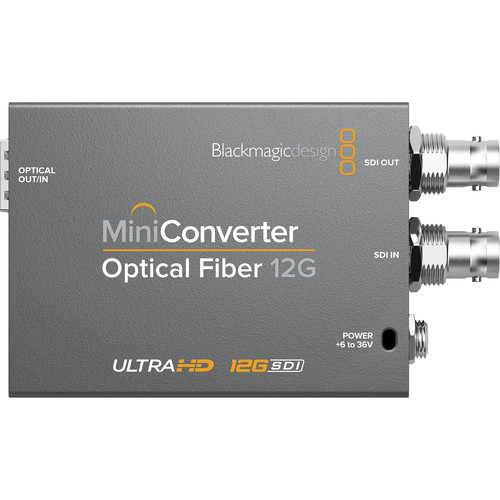

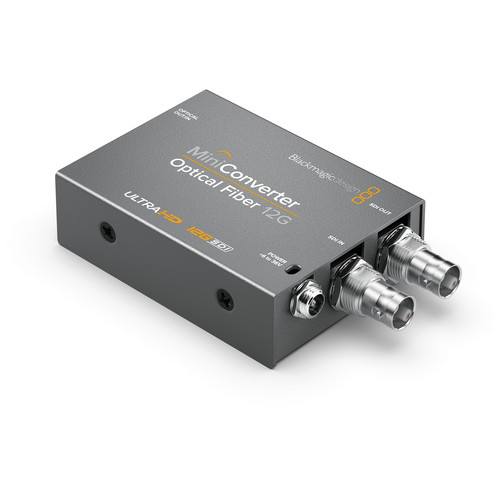

Blackmagic Design Mini Converter - Optical Fiber 12G

Video Input Connectors

1 x BNC (12G-SDI)

Input Video Format

SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps

Embedded Audio Input

SDI: 16-Channel

Video Output Connectors

1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)

Output Video Format

SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps

Embedded Audio Output

SDI: 16-Channel

Video Standard Compliance

SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
ITU -R BT.601

HDCP Support

None

Expansion Slots

1 x SFP Slot

Power Connector

1 x Barrel (6 to 36 VDC) Input

Power Consumption

Power Supply: 2 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Dimensions

4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm

Weight

7.4 oz / 210 g
