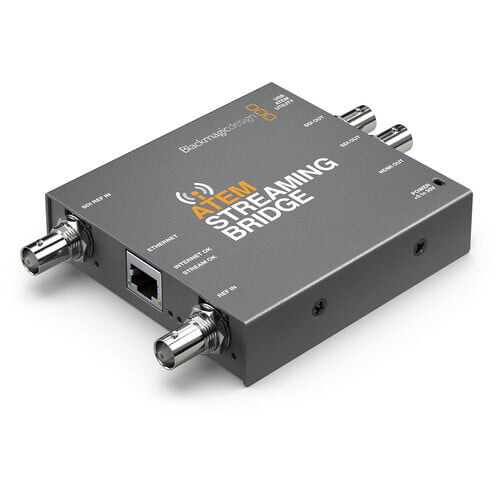

Blackmagic Design ATEM Streaming Bridge
The Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers allows you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60.
Specification
Input
Audio Input Connectors | None |
Output
Video Output Connectors | 2 x BNC (3G-SDI / HD-SDI) |
Output Video Format | HDMI |
Audio Output Connectors | None |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
Connectivity
Other I/O | 1 x RJ45 |
Expansion Slots | None |
IP Streaming
Video IP Decoding | H.264: 1920 x 1080 |
Power
Power Connector | 1 x Barrel (6 to 30 VDC) Input |
Power Consumption | Device: 6 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Recommended) |
General
Certifications | CE, FCC, Kcc, as per Manufacturer |
Dimensions | 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm |
Weight | 8.1 oz / 230 g |
Warranty Length | Limited 1-Year Warranty |
