CANFORD FST CABLE 1 pair, Black
$22.14
Tags:

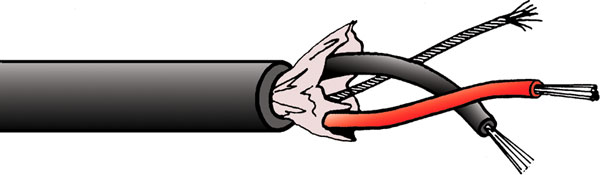

The overall PVC jacket is bonded to the screen tape on application so that one stripping action removes jacket and screen, leaving the signal wires and earth wire free for further processing.
Product Details
Specification:
Conductors: | 7/0.2mm (0.22mm²) tinned copper |
Insulation: | Foamed polypropylene, O.D. 1.46mm, black, red |
Lay-up: | Cores twisted together with 7/0.2mm drain wire, lay length 19mm |
Screen: | Aluminium/polyester tape, bonded to jacket |
Jacket: | PVC O.D. 4.0mm (wall thickness 0.5mm), various colours, printed with metre markings |
Impedance: | 100 ohms |
Capacitance: | 41pF/metre core to core, 85pF/metre core to core +screen (+/- 5pF/metre) |
Max. conductor resistance: | 81 ohms/km |
Weight: | 1.73kg/100m |
Reel length: | 500 metres. |
Cut lengths: | Available in any multiple of 1 metre |
