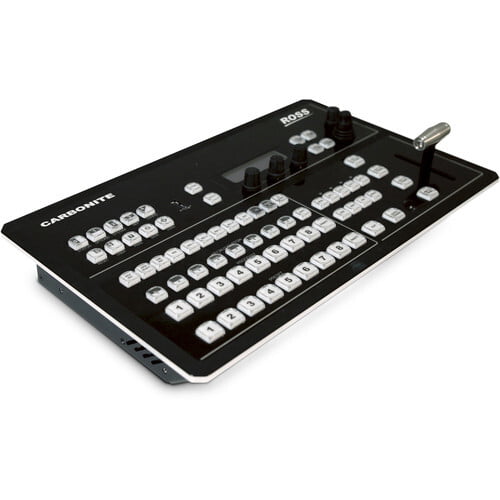

Ross Video Carbonite Black Solo 1 M/E Live Production Video Switcher
Non-returnable
$8,972.22
Tags:
The Ross Video Carbonite Black Solo 1 M/E Live Production Video Switcher is an HD/SD video production switcher with an integrated control surface providing versatile switching in a highly portable format that's easy to set up. Supporting multi-format video resolutions up to 1080p60, the Solo incorporates nine inputs including six SDI and three HDMI, and six outputs including five SDI and one HDMI.
Product Details
Specs
Mix Effects
| Available M/E Layers | 9 M/E |
| Effect Types | 8 x Graphic 1 x Transition |
| Graphics Memory | 8 GB (Total) |
Processing
| Switching Type | Pushbutton |
Input
| Number of Video Input Sources | 9 |
| Video Input Connectors | 6 x BNC (3G-SDI) Female 3 x HDMI Female |
| Input Video Format | HDMI / SDI 1080p: 29.97/50/59.94/60 fps 1080PsF: 23.98/25 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL: 50 fps NTSC: 59.94 fps |
| Embedded Audio Input | HDMI SDI |
Output
| Video Output Channels | 6 |
| Video Output Connectors | 5 x BNC (3G-SDI) Female 1 x HDMI Female (Program) |
| Output Video Format | HDMI / SDI 1080p: 50/59.94/60 fps 1080PsF: 23.98/25 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576): 50 fps NTSC: 59.94 fps |
| Audio Output Connectors | 1 x TOSLINK S/PDIF Female |
| Embedded Audio Output | HDMI SDI |
| Multiview Output | 10-Way Multiview viaHDMI |
Connectivity
| Other I/O | 1 x DB-25 GPI Input/Output 1 x DB-25 Tally Input/Output 1 x 6-Pin Euroblock RS-422 Input 1 x 6-Pin Euroblock RS-422 Output 1 x RJ45 LAN Input/Output |
| HDCP Support | None |
Power
General
Packaging Info
| Package Weight | 16.1 lb (7.0kg) |
| Box Dimensions (LxWxH) | 21.1 x 14.3 x 9.8" |
