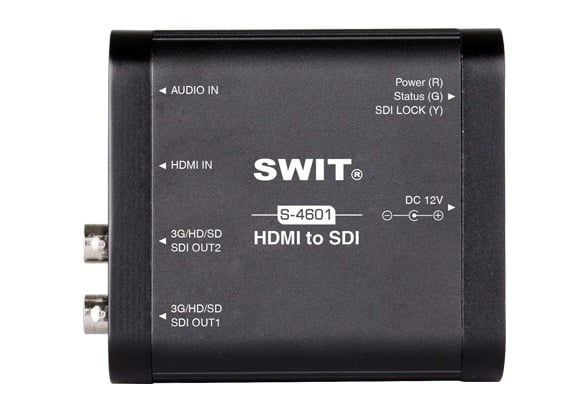

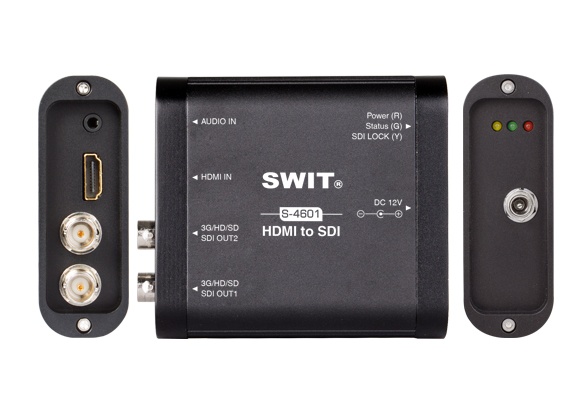

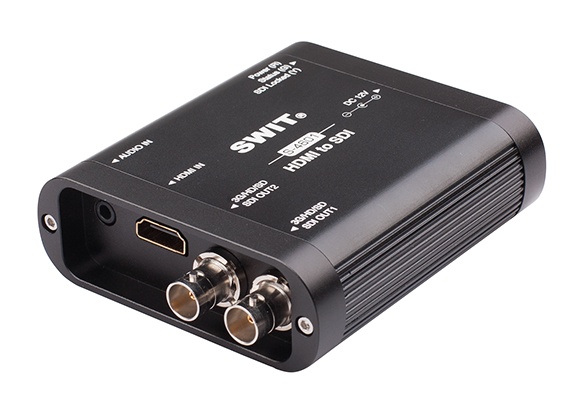

Swit S-4601 HDMI to SDI Converter

Input

1 x HDMI (1.3)
1 x analog audio via 3.5 mm connector

Output

2 x 3G/HD/SD-SDI via BNC

SDI

SMPTE-425M:
1080p (60 / 59.94 / 50)

SMPTE-274M:
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211:
1080PSF (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M:
720p (60 / 59.94 / 50)

SMPTE-125M:
480i (59.94)

ITU-R BT.656:
576i (50)

HDMI

480i
576i
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDCP

No

LED Indicators

Power: Red
HDMI Input Status: Green
SDI Output Lock: Yellow

Operating Voltage

6 to 18 VDC

Power Adapter (Included)

12 VDC; 5.5 mm barrel connector; center-pin positive

Power Consumption

≤3 W

Operating Temperature

32 to 158°F (0 to 70°C)

Operating Humidity

10 to 90%

Dimensions

2.9 x 2.9 x 1.1 cm (7.3 x 7.4 x 2.9 cm)

Weight

4.9 oz (138.5 g)

Package Weight

Box Dimensions (LxWxH)

6.5 x 4.7 x 3.2"
