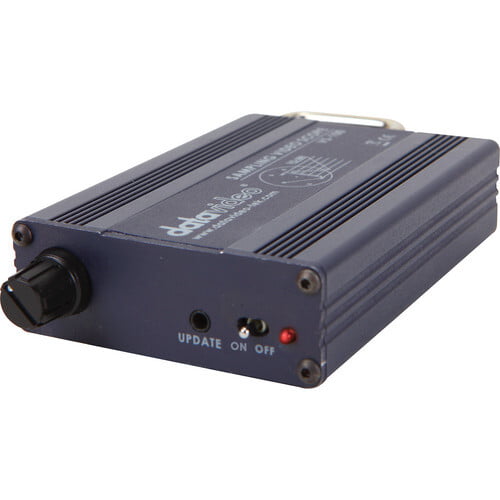

DATAVIDEO VS-100 Sampling Video Scope
The DataVideo VS-100 Sampling Video Scope is a video signal evaluation tool in a rugged aluminum housing with one SD/HD-SDI input and both an SD/HD-SDI and HDMI output.
Specification
Inputs/Outputs
Input
1 x BNC 75Ω
Output
1 x HDMI
Loop Through Output
1 x BNC 75Ω
Formats
Input
NTSC
PAL
HD
Input Resolutions
HD-SDI
1080i 50/59.97/60
1080p 23.97/29.97/30
720p 29.97/30/50/29.97/60
SD-SDI
NTSC
PAL
Output Resolution
Video Scope View
1280 x 720
Control Interface
1 x Rotary push knob
Firmware Updates
Via 9-in DIN connector
Construction
Painted aluminum
Power Requirements
VS-100
12 VDC, 0.2A
Power Supply
120 - 240 VAC, 50/60 Hz
Dimensions (W x H x D)
3.1 x 1.1 x 4.5" (79 x 28 x 113.5 mm)
Weight
0.57 lb (0.26 kg)
Packaging Info
Package Weight
0.498 kg
Box Dimensions (LxWxH)
8.3 x 5.9 x 3.1"
