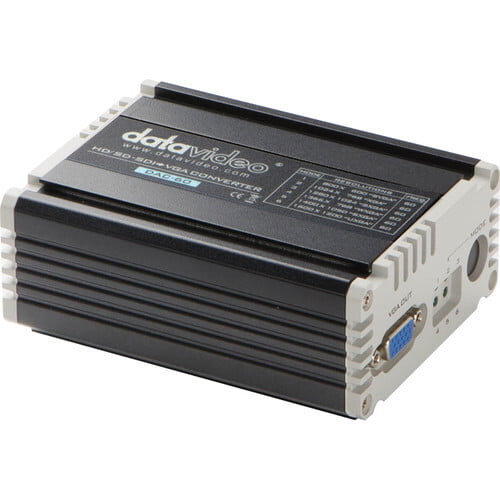

DATAVIDEO DAC-60 -HD/ SD-SDI to VGA converter

Specification

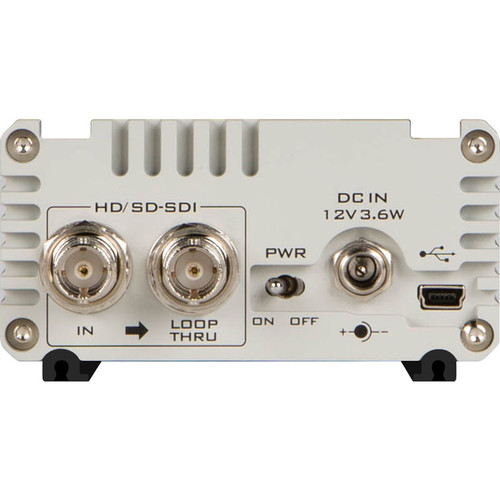

Inputs/Outputs	Input 1 x BNC 75Ω Output 1 x VGA Loop Through Output 1 x BNC 75Ω
Formats	Input SD/HD/3G-SDI Output VGA Loop Through SD/HD/3G-SDI
Input Resolutions	SD NTSC: 720 x 480i PAL: 720 x 576i HD 1280 x 720 50p, 60p, 59.94p 1920 x 1080 50i, 60i, 59.94i 1920 x 1080 24p, 25p, 30p 3G 1920 x 1080 50p, 60p, 59.94p

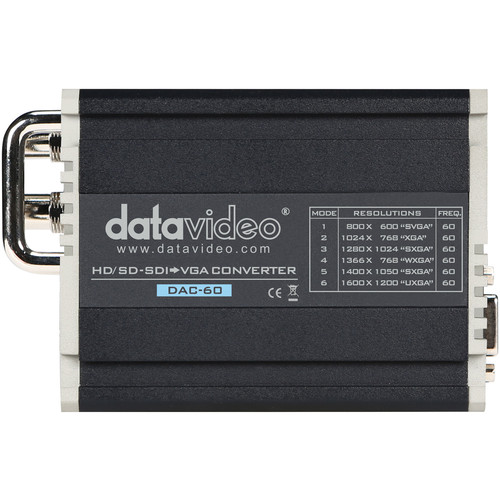

Output Resolution	VGA 800 x 600 60Hz 1024 x 768 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz 1400 x 1050 60Hz 1600 x 1200 60Hz
Cable Length	Loop-Through Output 3G: 140m of RG6/ 100m of RG59 HD: 200m of RG6/ 140m of RG59 SD: 400m of RG6/ 280m of RG59

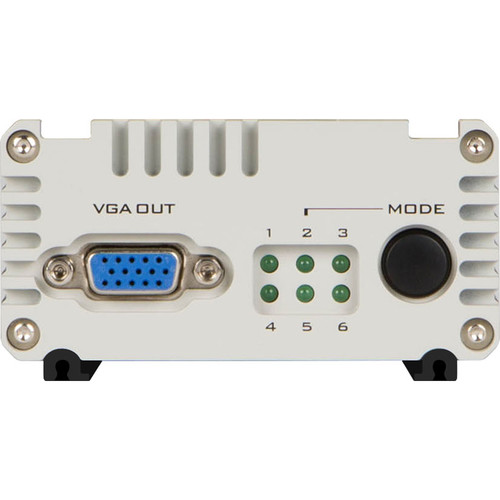

Control Interface	1 x mini USB port 1 x Push button: VGA output format select 6 x LED: VGA output format indicator 1 x On/Off switch
Construction	Painted Aluminum
Software	OS Requires Windows XP or Windows 7
Power Requirements	DAC-60 12VDC, 500mA Power Supply 120 - 240VAC, 50/60 Hz
Dimensions (L x W x H)	5.0 x 3.3 x 1.6" (127.1 x 84.8 x 41.4 mm)
Weight	13 oz (0.37 kg)
