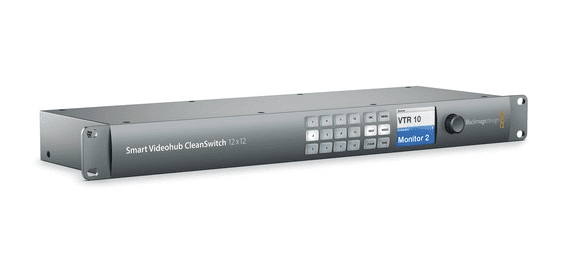

Blackmagic Design Smart Videohub 12 x 12 6G SDI
The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video.
Customize
Available Offer
Share :
Specification

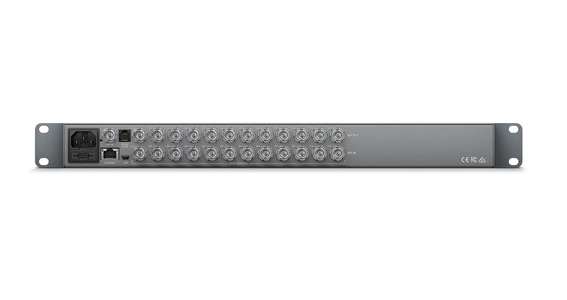

Connections
SDI Video Input | 12 x 10-bit SD/HD/6G-SDI |
SDI Video Output | 12 x 10-bit SD/HD/6G-SDI |
Reference Input | Blackburst and TriSync for SD, HD and UHD 4K |
Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI |
Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |

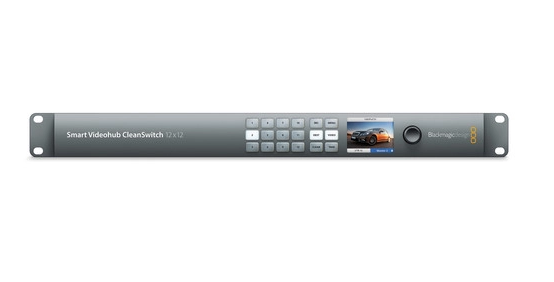

Control | 12 buttons for local control of Videohub |
Configuration | Via front panel LCD or use either RJ45 Ethernet |
Reclocking | On all SDI outputs, auto switching between SD, HD, or 6G-SDI video |
Standards
Format Support | SD Format Support |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656, and ITU-R BT.601 |
SDI Video Rates | SD-SDI: 270 Mb/s |
SDI Video Sampling | 4:2:2 and 4:4:4 |
SDI Color Precision | 4:2:2 and 4:4:4 10-bit |
SDI Audio Sampling | 48 kHz and 24-bit |
SDI Color Space | YUV or RGB |
SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
Software
Software Control | Router control included free for Windows and Mac OS X |
Internal Software Upgrade | Via included updater application |
General
Display | LCD for video and menu settings |
Power Supply | IEC power cable required |
Power Fail Protection | Router connections preserved and restored instantly at power on |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 113°F (-20 to 45°C) |
Relative Humidity | 0 to 90% non-condensing |
Rack Space | 1 RU |
Dimensions (W x H x D) | 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm) |
Weight | 4.14 lb (1.88 kg) |
