Vinten System Vision 100 2-stage CF PL GS SC

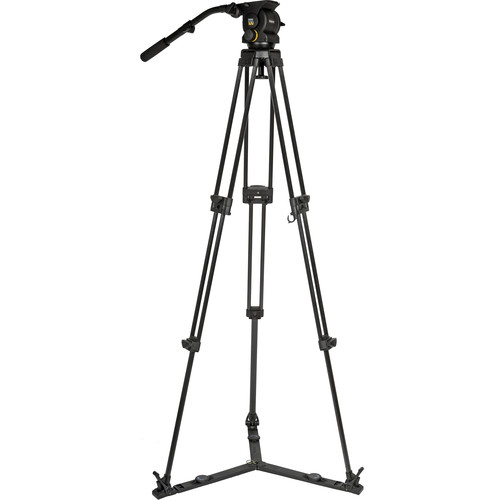

Combining the Vision 100 fluid head and carbon fiber tripod legs, the Black Vision 100 Carbon Fiber Tripod System from Vinten provides sturdy support for ENG, EFP, and small cinema cameras with rigs while maintaining a lightweight and compact frame. The 3772-3, 2-stage, lightweight, carbon fiber tripod legs weigh 5.7 pounds, feature a midlevel spreader, and can support up to 55.1 pounds.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Plate Type | Vinten 33364-900SP |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Balance Plate Sliding Range | 4" / 101.6 mm |
Tripod Platform
Base Mount | 100 mm Half Ball |
Pan & Tilt
Drag Control | Tilt: Continuous Plus 0 |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 44.1 lb / 20 kg |
Counter Balance | Continuous (15.4 to 44.1 lb / ) |
Center of Gravity | 5" / 12.7 cm |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 8.3 kg |
