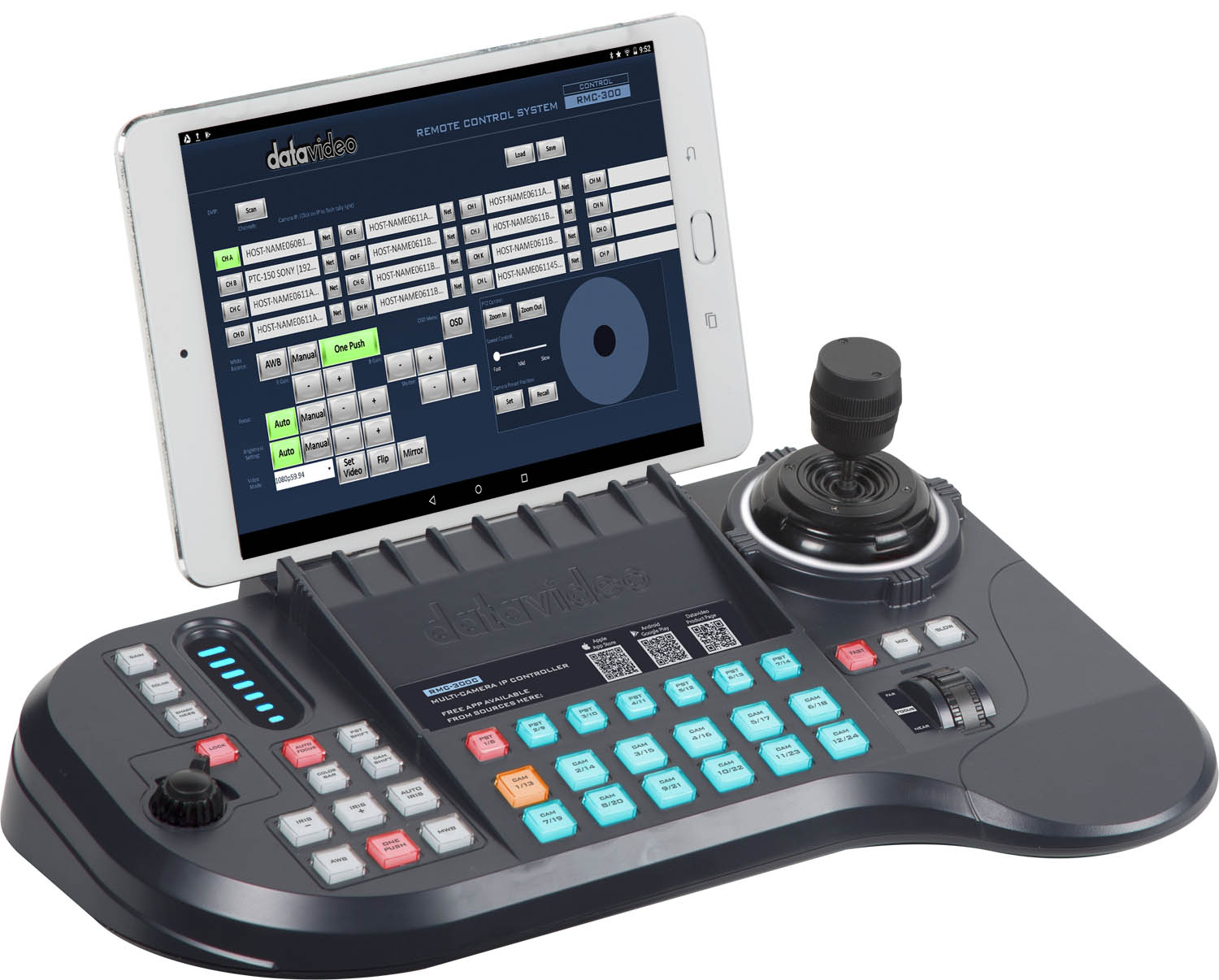

DATAVIDEO RMC-300A Multi PTZ camera ctrl (8 serial/24 IP)

Model Number

RMC-300A

Maximum Camera Control

24 Datavideo cameras over IP, up to 8 Datavideo cameras over serial

Present (Position)

14 for each Datavideo camera

Control Protocol

Sony VISCA, VISCA over IP, DVIP, DHCP client, only for Datavideo cameras

Connection to Cameras

RS-422, Ethernet

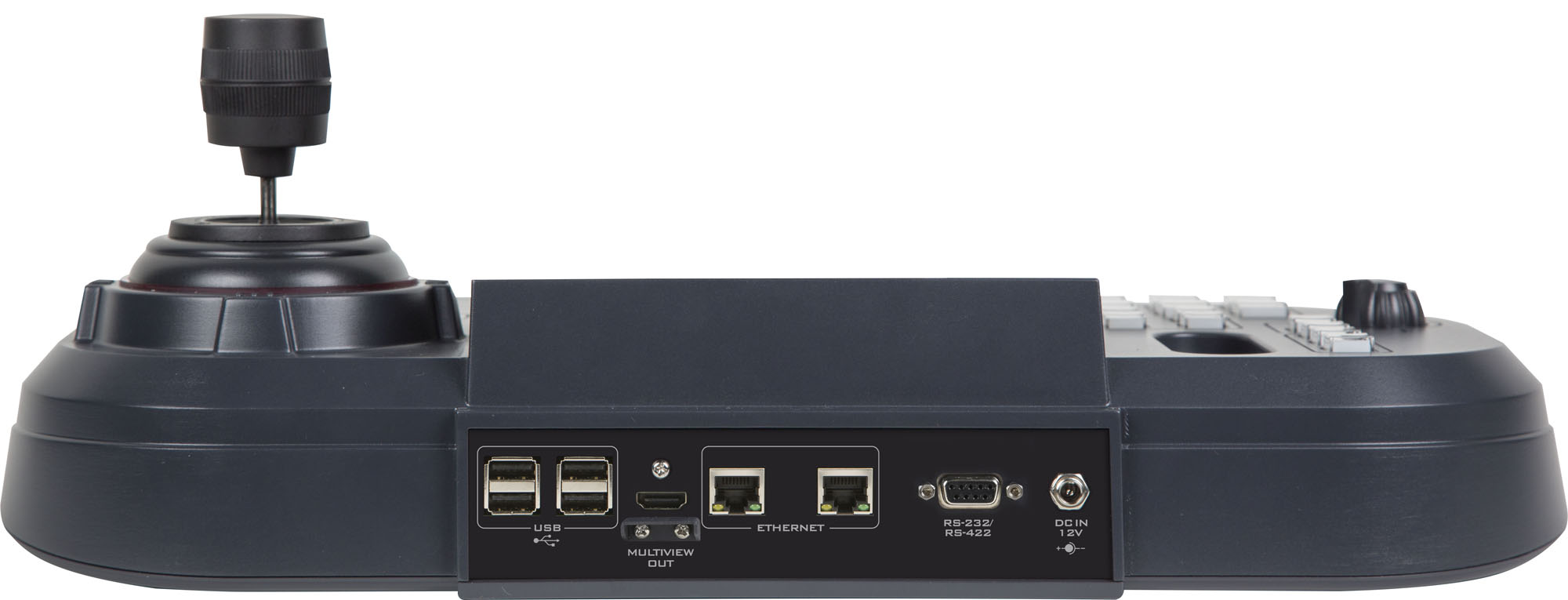

Input/Output

USB 2.0 x2
10/100Mbps Ethernet (RJ-45 connector) x1
RS-422 (RJ-45 connector) x1

Build-in Control Panel

Size: 5"
Resolution: 1280 x 720

Firmware Upgrade

USB 2.0

Dimension

420 x 294 x 134 mm

Weight

1.5 kg

Operating Temp. Range

0°C ~ 40°C (32°F~104°F)

Storage Temperature

- 10°C ~ 60°C (14°F~140°F)

Operating Humidity

10 % to 80 % (non-condensing)

Power

DC 12V, 19W

What's in the Box

1 x RMC-300A Main Unit
1 x DC 12V power adaptor
