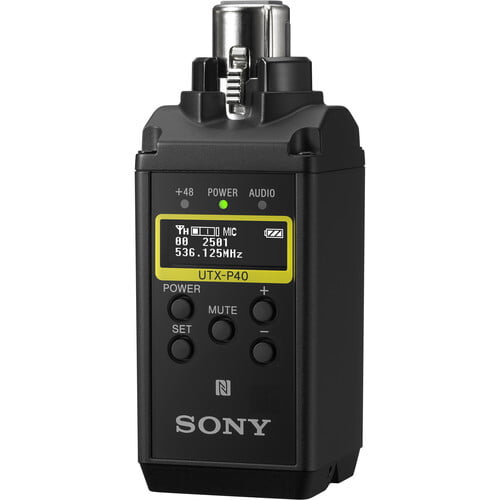

Sony - UTX-P40-K21 - UHF Synthesized Transmitter
The Sony UTX-P40 is a wireless plug-on transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this plug-on is well suited for tough operating conditions. It provides up to 6 hours of operation on two AA batteries, with a selectable 5/40mW RF power output and a transmission range up to 330'.
Specifications
System
Wireless Transmission | Analog UHF |
RF Frequency Band | 470 to 542 MHz |
RF Bandwidth | 72 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 330' / 100.6 m (Typical) |
Latency | 0.35 ms |
Modulation | FM |
Transmitter
Form Factor | Plug-On |
RF Output Power | 5 / 40 mW |
Audio I/O | 1 x XLR 3-Pin Female Input (Lockable) |
Phantom Power | +48 V |
Muting | Off/On Switch |
Audio Input Level | -60 dBV (Mic Level) |
Gain Range | 0 to +48 dB (3 dB Steps) |
Frequency Response | 23 Hz to 18 kHz |
Sync Method | NFC |
Antenna | 1 x Internal |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 6 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
Housing | Metal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 1.5 x 3.9 x 1.5" / 38 x 98 x 38 mm (without Antennas) |
Weight | 4.9 oz / 139 g (without Batteries) |
General
Packaging Info
Package Weight | 1.13 lb |
Box Dimensions (LxWxH) | 12.1 x 7.4 x 2.9" |
