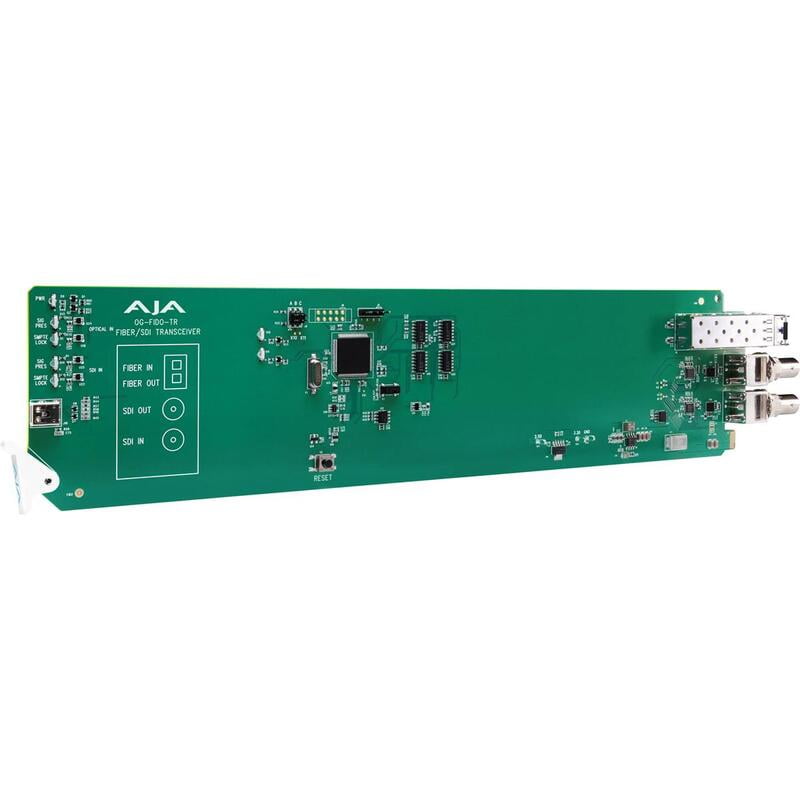

Aja OG-FIDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver

Video Formats

270 Mbps - 12 Gbps, format agnostic

Video Input Digital

1-channel independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082

1-channel independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082

Nominal Wavelength:

Rx 1260 nm (min), 1620 nm (max)

Optical Sensitivity:

-10 dBm (min 6 and 12 Gbps)

-14 dBm (min 270 Mbps, 1.5 Gbps and 3 Gbps)

Overload Power: -2 dBm (min)

Video Output Digital

1-channel independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082

1-channel independent Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082

Nominal Wavelength:1260 nm (min), 1310 nm (typ), 1360 nm (max)

Optical Power: -5 dBm (min), 2 dBm (max)

Extinction Ratio: 3.5 dB (min)

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select

All other rates are passed through and not reclocked

User Interface

openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card, two slots required for each card

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 3 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
