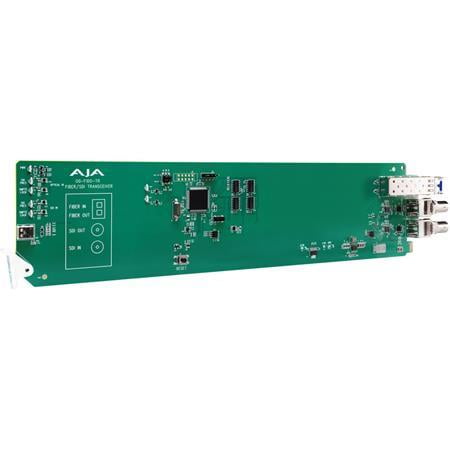

Aja OG-FIDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

Video Formats

150 Mbps - 3 Gbps, format agnostic

Video Input Digital

1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424

1-Channel Multi-Mode LC Fiber Input, SMPTE-297

Nominal Wavelength: 850 nm

Optical Sensitivity: -15dBm (min)

Video Output Digital

1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424

1-Channel Multi-Mode LC Fiber Output, SMPTE-297

Nominal Wavelength: 850 nm

Optical Power: -7dBm (min), -2dBm (max)

Extinction Ratio: 7.5dB (Typ)

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select

All other rates are passed through and not reclocked


 User Interface

openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
