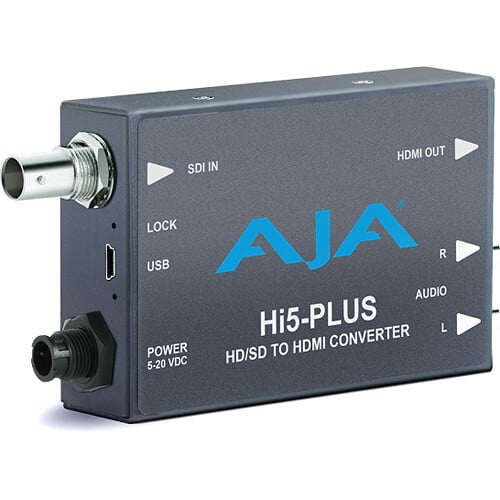

AJA HI5-PLUS-R0 3G-SDI to HDMI with PsF to P support - with 1 meter HDMI cable
Video Formats
• (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 720p 50, 59.94, 60
• (SD) 625i
• (SD) 525i
*NOTE: converts to progressive
Video Input
• 3G-SDI with embedded audio
Video Outputs
• HDMI with embedded audio up to 8-Channels
(selectable by Mini-Config)
• 8-bit RGB 4:4:4
• 10-bit YCbCr 4:2:2
• 12-bit
Audio Input
• SDI embedded audio, select from 16-Channels
Audio Output
• 2-Channel RCA style (-10dBu nominal)
Size (w x d x h)
• 4.6” × 2.4” × 1.0” (117mm × 61mm × 25mm)
Power
• Uses AJA power supply model DWP-U-R1, included with purchase
• 100-240V, 50/60 Hz universal input
• +5V DC regulated, 7.5 watt capacity
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
