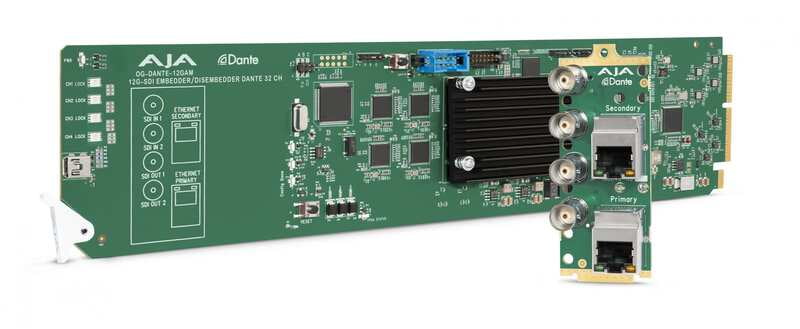

Aja OG-DANTE-12GAM openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder
Video Formats
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60*
(SD) 625i 50
(SD) 525i 59.94
RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Note: Raster and frame rate dependent, please see OG-Dante-12GAM Video Formats in Documents and Manual.
Video Input Digital
2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Single Link SD/HD/2K/UltraHD/4K
Video Output Digital
2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Single Link SD/HD/2K/UltraHD/4K
Internal Signal Generator
2x independent internal signal generators
Cable Equalization
(Belden 1694A coax)
12 Gbps, 65m
6 Gbps, 120m
3 Gbps, 180m
1.5 Gbps, 200m
270 Mbps, 405m
Video Path Delay
Video Out is a delayed, reclocked version of Video In, at the same format and frame rate. Video Out is undefined when no input.
Video Latency, time measured between video input and video output connector:
12G = 3.2 µsec
6G = 3.2 µsec
3G level B-DL = 6.3 µsec
3G level A = 3.2 µsec
HD (1.5 Gb) = 6.3 µsec
SD (270 Mb) = 17.2 µsec
Audio Input Digital
SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
Dante: 1x Primary Ethernet port and 1x Secondary Ethernet port, 32-channels
Audio Output Digital
SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
Dante: 1x Primary and 1x Secondary Gigabit Ethernet ports, 32-channels
SDI Embedded Audio
SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
SMPTE 272M (SD): 20-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden
4 groups (16-channels) of audio supported per SDI path
Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Dante Audio
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
Audio Latency
Embed Path 1500 µsec
Disembed Path 1410 µsec
User Interface
openGear DashBoard network control software via Windows, macOS or Linux
Dante Controller
Size
openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 15 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
