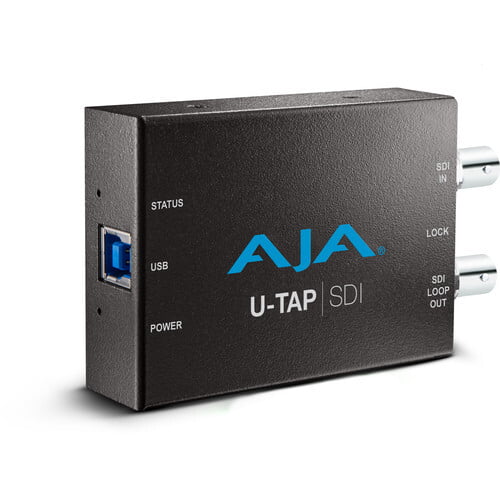

AJA U-TAP USB 3.0 Gen 1 Powered SDI Capture Device
Capture 3G-SDI video on your computer or laptop with this U-TAP USB 3.1 Gen 1 Powered SDI Capture Device from AJA. The compact converter fits in your pocket and features a 3G-SDI input, a 3G-SDI output, and a USB 3.1 Gen 1 Type-B output.
Specifications
Host Connection | USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) |
Input
Video Input Connectors | 1 x BNC (3G-SDI) Female |
Input Video Format | SDI |
Audio Input Connectors | None |
Input Audio Format | Analog: 48 kHz / 24-Bit |
Embedded Audio Input | SDI: 2-Channel |
Output
Video Output Connectors | 1 x BNC (3G-SDI) Female (Loop Output) |
Standards
Video Standard Compliance | SMPTE 259M/292M |
Hardware
OS Compatibility | Windows |
Power
Power Connector | None |
Power Consumption | Device: 5 VDC (6.5 W) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 10 to 90% |
General
Dimensions | 4.1 x 2.4 x 1" / 10.41 x 6.1 x 2.54 cm |
Weight | 0.3 lb / 0.14 kg |
Warranty Length | Limited 3-Year Warranty |
