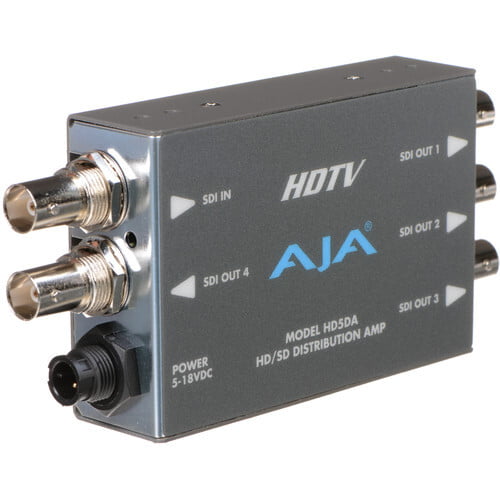

AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP
$255.00
Tags:
The HD5DA is a miniature, low cost, 1x4 HD-SDI/SDI distribution amplifier/repeater. Featuring four separately buffered HD-SDI/SDI outputs, the HD5DA provides automatic input cable equalization to 100 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5 Gb.
Product Details
SPECIFICATION
Formats
• 1.5 Gb, 143, 177, 270, 360 Mb, Auto Select
Inputs
• 1 HD-SDI, SDI (SMPTE 292/296), 1 x BNC
Outputs
• 4 HD-SDI, SDI, 4 x BNC
• Equalizing
Return Loss
• >15dB - 270 Mhz (Input and Output)
Size (w x d x h)
• 5.8" x 2.4" x 1.0" (131mm x 61mm x 25mm)
Power
• 5VDC Regulated, 2.5 watts, power supply required, included with purchase
Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
