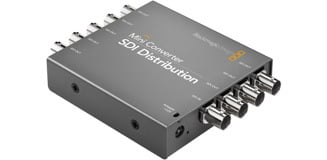

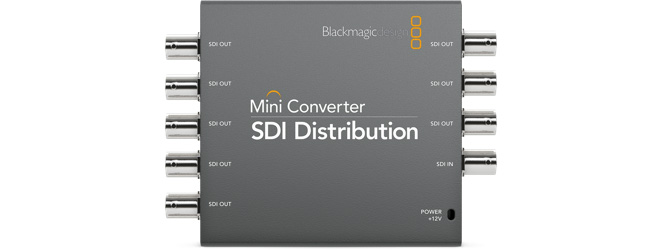

Blackmagic Design Mini Converter - SDI Distribution

Connections

SDI Distribution

SDI Video Input

Switchable between SD, HD and 3 Gb/s SDI.

SDI Video Outputs

8 outputs automatically match the SDI video input

Analog Video

None

HDMI

None

Optical Fibre Video Input

None

Optical Fibre Video Output

None

Optical Fibre Audio Input

None

Optical Fibre Audio Output

None

Analog Audio

None

AES/EBU Digital Audio

None

SDI Redundant Input

None

Reference Input

None

Multi Rate Support

Auto detection of HD or SD inputs

Updates and Configuration

None

Re-clocking

Yes

Standards

SDI Format Support

NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p and 2K PsF

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television Standard sample rate of 48kHz and 24 bit

SDI Color Precision>

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.

nalog Format Support

None

Analog Color Precision

4:2:2

Analog Color Space

YUV

HDMI Format Support

None

HDMI Color Precision

4:2:2 and 4:4:4

HDMI Color Space

YUV and RGB

Copy Protection

Mini Converter HDMI to SDI cannot convert from copy protected HDCP encrypted HDMI sources to SDI.

Extras

Software Control

None

Settings Control

None

Firmware Upgrade

None

Power Supply

+12V universal power supply included. Cable tie point.

110v Power Consumption

40mA

220v Power Consumption

20mA
