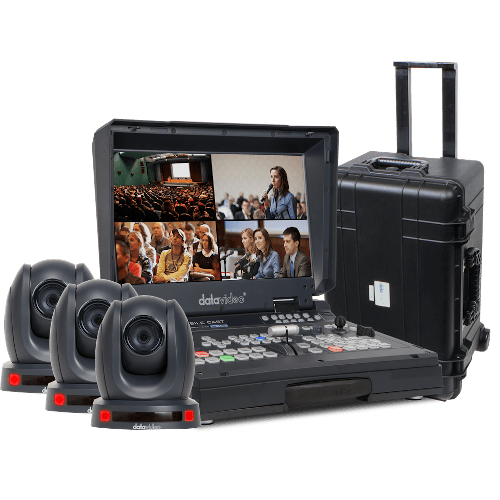

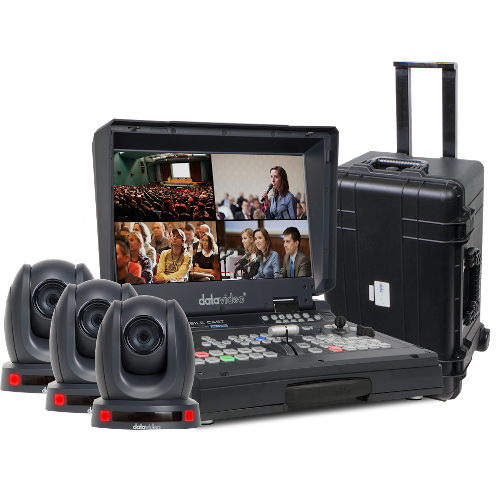

DATAVIDEO BDL-1601 - HS-1600T, three PTC-140T's and a sturdy rolling case for transport

Video Standard

HD & SD

Video Format

1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz

Video Input

3 x HDBaseT
1 x HDMI

Computer Graphics Interface

1 via HDMI (Lumakey)

Down-converted output

Yes

Video output

3 x HDMI PGM
1 x STREAM (RJ-45)

Audio input

2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio

Audio output

1x Stereo headphone

Embedded audio support

Support for 2 channels of embedded audio

Audio delay calibration

N/A

A+V switching

N/A

USK/DSK

1x USK Lumakey

Picture in Picture (PiP)

1

Logo insertion

N/A

Built-in audio mixer

Master audio output control

Built-in monitor display

17.3” HD TFT LED backlit, 1920x1080 pix

Built in intercom/tally

Tally to connected cameras

Streaming audio/video encoding

H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps

AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit

Streaming protocol

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)

Streaming settings control

Web browser UI for configuration and control Socket commands

Recording file system

FAT, exFAT, NTFS

Recording file format

MP4

Recording settings control

Web UI for system configuration and control

Special features

Built-in camera controller

Dimensions (LxWxH)

455 x 355 x 134 mm

Weight

17.2 Lbs (7.8 kg), Reinforce Plastic Case

Power

DC 48V, 4.16A

Operating temp. range

0~40 °C

Options

CB-60/61/62
