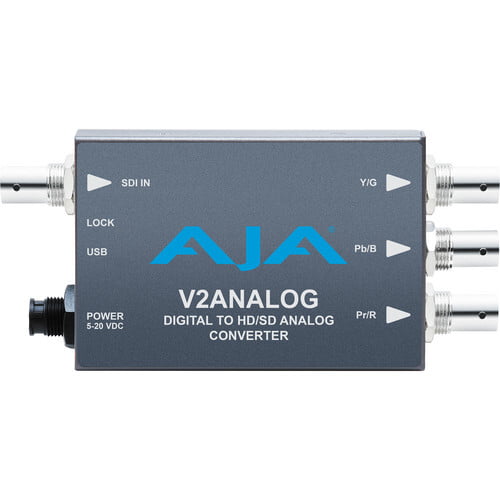

AJA V2Analog HD/SD-SDI to Analog Mini-Converter
$439.00
Tags:
V2Analog is a high-quality, cost-effective digital to analog video converter that’s an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows.
Product Details
SPECIFICATION
Video Formats
- (HD) 1080i 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1080PsF 23.98, 24, 25
- (HD) 720p 50, 59.94, 60
- (SD) 625i
- (SD) 525i
Input
- HD/SD-SDI, SMPTE-259/292/296M, 1x BNC
Outputs
- HD component YPbPr, RGB (SMPTE-274), BNC
- SD component (Betacam, EBU-N10)/composite/YC (S-Video), BNC
User Controls
- External Dipswitch
- Control (Local/Remote)
- Component/Composite (SD Only)
- Format (YPbPr/YC or RGB)
- Pedestal Present (on/off) (SD Only)
Size (w x d x h)
- 5.1” × 2.4” × 1.0” (129.54 × 60.96 × 25.4 mm)
Power
- +5-20 VDC, 3 watts
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
