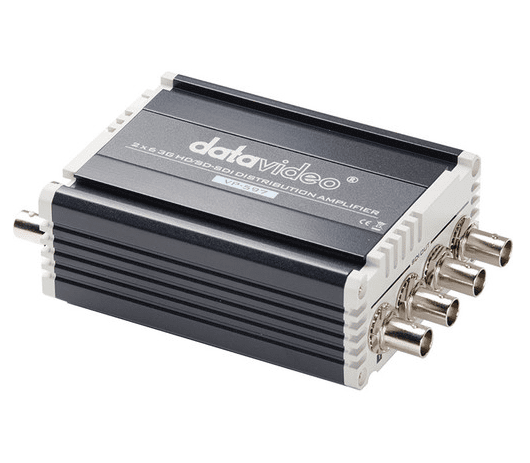

DATAVIDEO VP-597 - 2x6 3G HD/SD-SDI Distribution Amplifier
Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control. It supports 3G/HD/SD SDI video with embedded audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface.
SPECIFICATION
Model Number
VP-597
Video Input/Output
Input: 2 x BNC
Output: 6 x BNC
Video Format
1080p 60/59.94/50/29.97/23.98
1080i 60/59.94/50
720p 60/59.94/50
525i, 625i
Video Standard
----
Video Processing
----
Video bandwidth
----
Audio Format
Support SDI embedded audio
Up to 8 channels, 48KHz, PCM audio
Power
12V / 2.8W
Dimension (LxWxH)
127 x 85 x 45 mm
Weight
0.5 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x VP-597 product
1 x AD Switch 12V 500mA
1 x 3.5Φ GPI Cable Stereo
