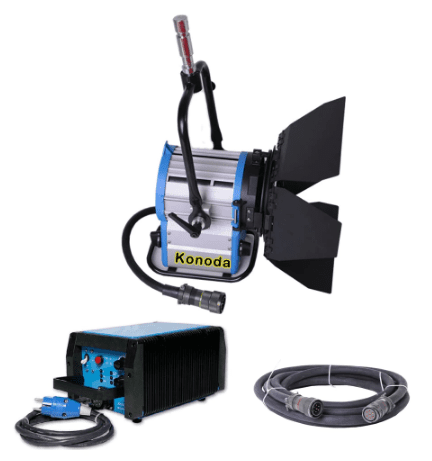

PRO Daylight Compact 575 HMI 575W Fresnel Light +575W & 1200W Electronic Ballast for Studio Film Lighting
Our HMI ballast provides the latest standards in ballast technology. Flicker free, low noise, high output, this ballast is ideal for most demanding. A rugged and compact design offers easy handling in the field. Safety circuits such as over-voltage, over-temperature and short-circuit protection gives safe and reliable operation dimming to 50% of full power.
Specifications:
575W HMI Fresnel Light Head:
source type: | HMI - Fresnel |
power: | 575 watts |
color temperature: | 6000K |
bulb socket: | G22 |
lens diameter: | 5.1'' (130 mm) borosilicate Fresnel lens |
mount: | spigot 29mm (1/8" receiver) |
power cord: | 7m |
protection class: | IP23 |
material: | aluminum |
color: | blue/gray |
product weight: | 7.9 kg / 17.5 lbs |
photometric data: | same as Arri's |
575w & 1200w Electronic Ballast
ballast type: | electronic |
ballastpower | 575/1200 watts |
line power: | 1380VA(max) |
supply voltage: | 90-265VAC, 50/60Hz L,N,PE |
current: | 17-6A |
power factor | c > 0.98 |
lamp power: | 575W-1200W (constant control) |
current characteristic: | square wave,75Hz |
dimming range: | 100% - 50% nominal lamp power |
starting: | cold start and hot re-strike |
typical light ripple: | typ. <3% |
power cord: | 1.5m |
protection class: | IP32 |
material: | metal housing |
product weight: | 9.5 kg |
dimensions ( H x W x L ): | 200 x 290 x 350 mm |
