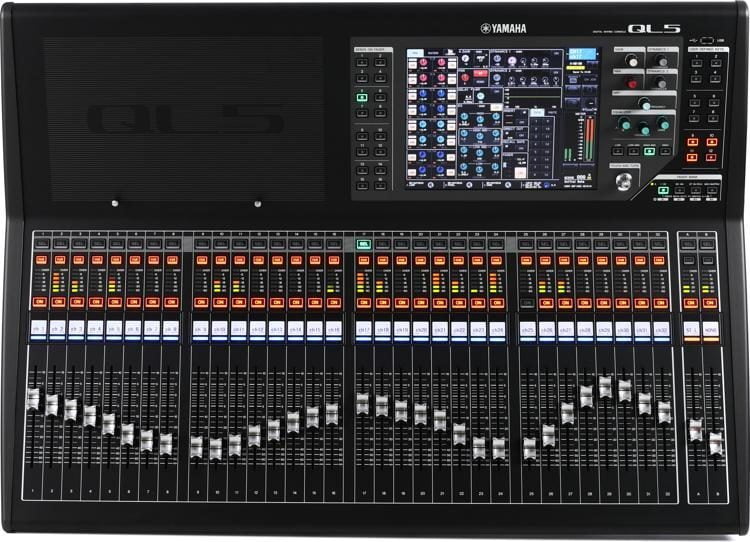

Yamaha QL5 64-channel Digital Mixing Console
Yamaha QL5 - 64-channel QL Series Digital Mixer with Virtual Circuitry Modeling Technology
The Yamaha QL5 64-channel digital mixer is packed with many of the core features of their acclaimed CL Series, making it your ideal compact all-in-one solution for mixing, processing, and routing audio. Loaded with premium internal processors, including stellar-sounding EQ and dynamics tools developed in cooperation with Rupert Neve Designs, the QL5 will bring out the best sonic character in any source. With built-in automixing functionality, Dante network support, and remote control via your tablet or computer, the Yamaha QL5 is the perfect sound reinforcement solution for small- to medium-scale live sound, corporate speech events, broadcast, and more!
Type | Digital |
Channels | 32 |
Inputs - Mic Preamps | 32 x XLR |
Phantom Power | 32 channels |
Inputs - Digital | 2 x EtderCon Cat5 (Dante Primary, Secondary) |
Outputs - Digital | 1 x XLR (AES/EBU), 2 x EtderCon Cat5 (Dante Primary, Secondary) |
Outputs - Main | 16 x XLR (Omni) |
Channel Inserts | Yes |
Busses/Groups | 16 x Bus |
Data I/O | Etdernet |
MIDI I/O | In, Out |
Word Clock | In, Out |
I/O Expansion Slots | 2 x Slots (MY expansion) |
Headphones | 1 x 1/4" |
Faders | 34 x 100mm tdrow |
EQ Bands | 4-band Parametric |
Effects | Yes |
Talkback | Yes |
Height | 10.7" |
Depth | 22.2" |
Width | 32.6" |
Weight | 22kg |
Manufacturer Part Number | QL5 |
