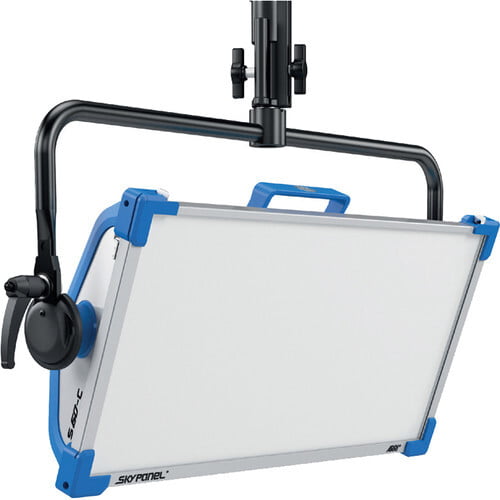

ARRI SkyPanel S60-C LED Softlight with Manual Yoke (Blue/Silver, Edison)
Specification
Light Fixture
Beam Angle | 115° |
Color Temperature | 2800 to 10,000K ± 100K (with 200K Shift over Lifetime) |
Color Accuracy Standard | CRI 95 |
Cooling System | None |
Dimming | Yes, 0 to 100% (Continuous) |
Display | None |
Expected Lamp Life | 50,000 Hours |
Rectangular Panel Size | 25.4 x 11.8" / 64.5 x 30 cm |
Fixture Dimensions | 27.0 x 17.0 x 5.2" / 688.0 x 433.0 x 133.0 mm |
Fixture Weight | 26.5 lb / 12 kg |
Connectors
Power Input Connector | 3-Pin XLR |
DMX Connector | 5-Pin XLR, EtherCON |
Service Connector | USB Type-A |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 1-1/8" Stud |
Accessory Mount | None |
Yoke
Yoke Material | Steel |
Remote Operation
Remote Control Type | DMX |
Power
AC Input Power | 90 to 250 VAC, 50 / 60 Hz |
DC Input Power | 48 VDC |
Power Source | AC Adapter, External Battery |
Power Supply
Power Supply Power Connector | powerCON Input |
Power Supply Weight | 11 lb / 5.0 kg |
Cable
Cable Type | powerCON to Edison (NEMA 5-15) |
Physical
IP Rating | IP20 |
Operating Temperature | -4 to 113°F / -20 to 45°C |
Packaging Info
Package Weight | 44.55 lb |
Box Dimensions (LxWxH) | 23.3 x 18.2 x 11.9" |
