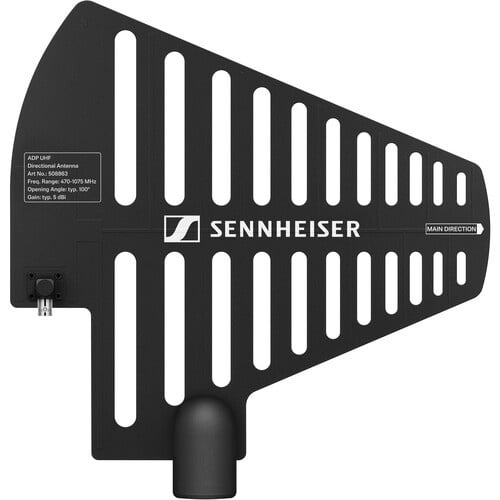

Sennheiser ADP UHF (470 - 1075 MHZ)
$350.00
Tags:
Passive directional antenna for use with Evolution Wireless Digital systems. The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The ⅝" and ⅜" threads make it easy to mount on any mic stand.
Product Details
SPECIFICATION
Frequency Range | 470 to 1075 MHz |
Apex Angle | Approx. 100° (-3 dB) |
Front-to-Back Ratio | > 14 dB |
Gain | 5 dBi (Typical) |
Impedance | 50 Ohms |
Connection | BNC Female, No DC Path |
Threads | 3/8"-16 and and 5/8"-27 |
Relative Humidity | 5 to 95% |
Temperature | Operating Temperature Range: 14 to 131°F / -10 to 55°C Storage Temperature Range: -4 to 185°F / -20 to 85°C |
Dimensions | 12.5 x 12.2" / 319 x 310 mm |
Weight | 11.2 oz / 320 g |
Packaging Info
Package Weight | 1.1 kg |
Box Dimensions (LxWxH) | 14.3 x 12.9 x 1.6" |
