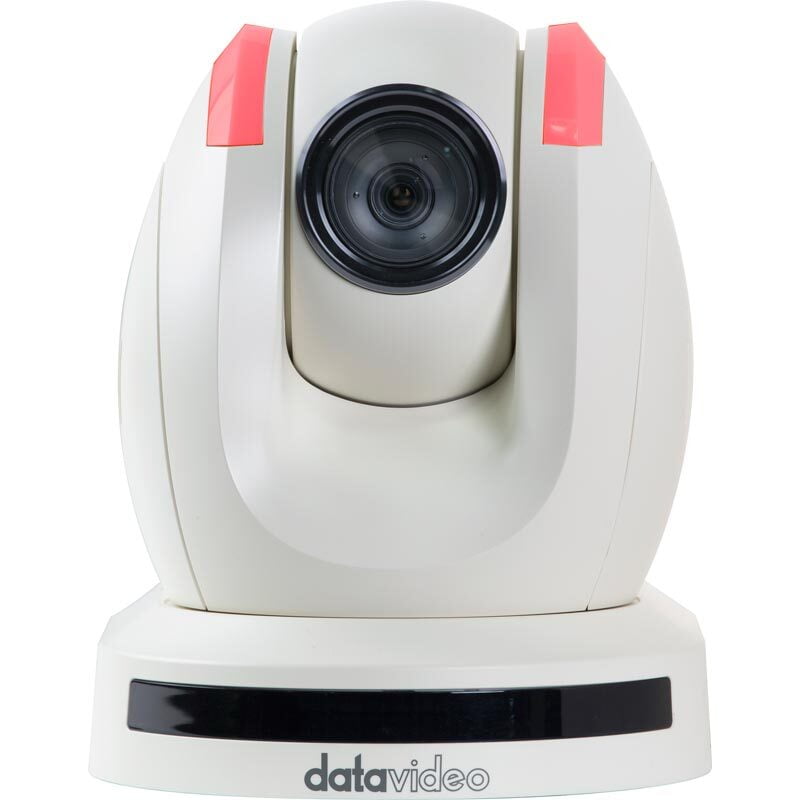

DATAVIDEO PTC-150TW - HD/SD PTZ Video Camera with HDBaseT Technology

Video format

1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)

Image Sensor

1/2.8” type progressive scan CMOS sensor

Effective Pixels (approx.)

2.14 Mega pixels

S/N Ratio

50dB

Min. Illumination

Color : 0.4 lx
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)

Electronic Shutter

1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)

Zoom Ratio

30x Optical Zoom

Gamma Control

Off / Normal / Standard Mode 1-4

Iris Control

Auto / Manual

Digital Noise Reductions

Yes

On-Screen Display (OSD)

English

White Balance

AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent

AGC / Gain Control

Auto / Manual
Max. Gain Limit

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Panning / Tilting Range

Pan: 270° , Tilt: +90° to -20°

Panning / Tilting Speed

Manual: 1~150°/Sec
Swing: 1~150°/Sec

Preset

50 Position

Focal Length

f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7

Field of View (Horizontal, Wide)

Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation

Day & Night function

Video Output

HDMI (V1.3) x 1
3G-SDI x 1
CVBS x 1
HDBaseT x 1 to PTC-150T Receiver Box

Tally LED

Dual color (Red, Green)

Filter

M52.0 x 0.75 Thread with UV Protection

Protocol

VISCA, DVIP

Remote Control Interface and Transmit Distance

RS-422: Transmit up to 1000m
HDBaseT (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m

F/W Update

USB

IR Control

Yes

Camera Control Unit

HS-1500T/HS-1600T/RMC-180/RMC-300C

Tripod Mount

1/4-20 UNC

Options

WM-1/WM-10

Color

Black/White

Dimension (LxWxH)

173 x 189 x 219 mm

Weight

2.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 29W

What's in the Box

1 x PTC-150T/TW Unit
1 x HBT-11 Receiver Box
1 x IR remote controller
1 x PTC-150T/TW Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x DC 48V Power Adaptor
2 x Power Cord
1 x A braided safety cable
1 x Phoenix connector to RJ-45
