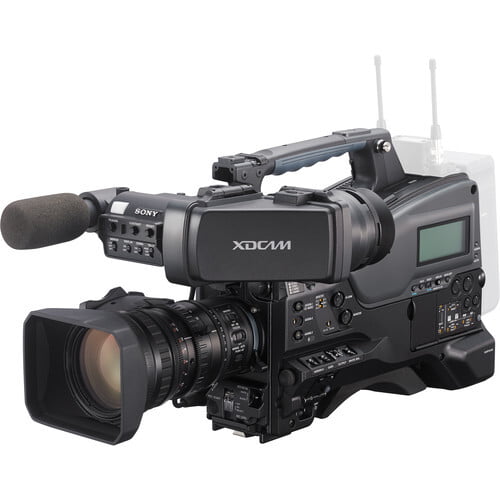

Sony PXW-X320 XDCAM Solid State Memory Camcorder without Fujinon 16x Servo Zoom Lens

Image Sensor

3-Chip 1/2" CMOS Sensor

Sensor Resolution

1920 x 1080

Horizontal Resolution (TV Lines)

1000 TV Lines or More

Gain

-3 to 24 dB

Signal-to-Noise Ratio

60 dB

Focal Length

5.8 to 93mm

35mm Equivalent Focal Length

31.4 to 503mm

Optical Zoom Ratio

16x

Maximum Aperture

f/1 to 9

Minimum Aperture

f/16

Filter Size

82 mm

Focus Control

Autofocus
Manual Focus

Lens Mount

B4 Mount

Shutter Speed

1/1 to 1/2000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Recording Media

2 x SxS Card Slots
1 x SD Card Slot

Recording Modes

XAVC-I:
1920 x 1080p at 23.98/25/29.97 fps (89 to 112 Mb/s)
1280 x 720p at 50/59.94 fps (112 Mb/s)
XAVC-L:
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG-2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)

Variable Frame Rates

1080p: 1 to 30 fps
720p: 1 to 60 fps

Audio Recording

4-Channel 24-Bit 48 kHz

Video Connectors

1 x BNC (Composite) Output
2 x BNC (HD-SDI) Output
1 x HDMI Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 5-Pin XLR Output
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Timecode Output
1 x BNC Genlock Input
1 x BNC Timecode Input
1 x USB Type-A
1 x 6-Pin FireWire Data, Video Output
1 x USB Type-B
1 x 12-Pin Lens Control
1 x 8-Pin Hirose Control
1 x DE-15/DB-15 Wireless Receiver Input

EVF Display Type

LCD

Screen Size

3.5"

EVF Resolution

960 x 540

Power Connectors

1 x 4-Pin XLR Input
1 x D-Tap Output

Power Consumption

18 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

4.9 x 10.6 x 13.1" / 124 x 269 x 332 mm

Weight

7.5 lb / 3.4 kg

Package Weight

17.6 lb

Box Dimensions (LxWxH)

17.7 x 15.1 x 14.2"
