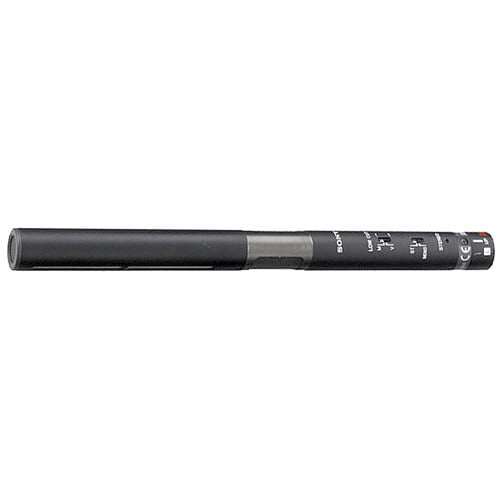

Sony ECM-680S M/S Stereo Shotgun Microphone
The Sony ECM-680 Stereo Shotgun Microphone provides both M/S (Mid-Side) stereo, and mono audio capturing, at the touch of a switch. The electret-condenser, unidirectional (cardioid) ECM-680, features internal M/S decoding for true stereo placement.
Transducer | Electret Condenser |
Polar Pattern | M/S (Mid-Side) Stereo |
Frequency Response | Stereo: 50Hz to 20kHz |
Dynamic Range (Typical) | Stereo: 104dB or more |
Signal-to-Noise Ratio | Stereo: 74dB or more |
Maximum Input Sound Level | 124dB SPL |
Power Requirements | DC 40 to 52V |
Output Impedance | 100 ohms +/- 20% |
Output Connectors | 5-pin XLR (Cable Supplied) |
Pad | No |
Low Frequency Roll-Off | Two Position (M,V) Low-Cut Filter |
Dimensions | 9.84 x 0.78" (250 x 20mm) |
Weight | 140g (4.9 oz) |
Packaging Info
Package Weight | 0.86 KG |
Box Dimensions (LxWxH) | 15.7 x 5.4 x 0.01" |
