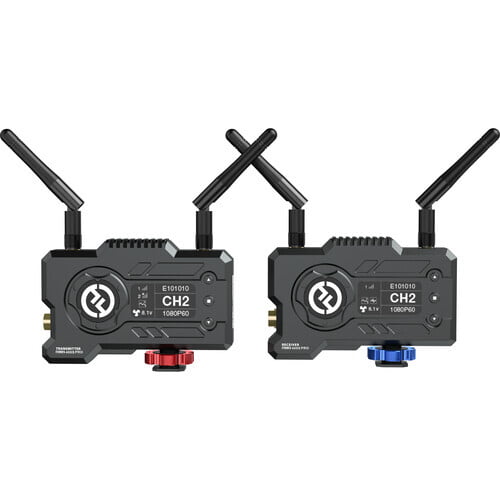

Hollyland Mars 400S PRO SDI/HDMI Wireless Video Transmission System
Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO SDI/HDMI Wireless Video Transmission System from Hollyland. The transmitter provides HDMI and SDI inputs and the receiver offers SDI and HDMI outputs. It features extremely low 0.08s latency with line-of-sight transmission up to 400' to the receiver and up to 300' to the Hollyview Wi-Fi app.
SPECIIFICATION
Wireless
Wireless Range | 400' / 121.92 m (Line-of-Sight) |
Channel Bandwidth | 20 MHz |
Frequency Range | US: 5 GHz |
Latency | 0.08 sec |
RF Power | < 21 dBm |
RF Sensitivity | -80 dBm |
Wireless Video Compression | Uncompressed |
Interfaces
Transmitter Antenna Ports | 2 x RP-SMA Male |
Receiver Antenna Ports | 2 x RP-SMA Male |
Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input |
Receiver Video Connectors | 1 x BNC (3G-SDI) Output |
Transmitter Other I/O | 1 x USB Type-C |
Receiver Other I/O | 1 x USB Type-C |
Embedded Audio | HDMI/SDI |
Format Support
Video Format | SDI/BNC: |
Display
Transmitter Panel Type | OLED |
Receiver Panel Type | OLED |
Power
Transmitter Built-In Battery | None |
Receiver Built-In Battery | None |
Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
Transmitter Power Connector | 1 x Barrel (6 to 16 VDC up to 2 A) Input |
Receiver Power Connector | 1 x Barrel (6 to 16 VDC up to 2 A) Input |
Transmitter Power Consumption | Power Supply: 6 to 16 VDC (11 W) |
Receiver Power Consumption | Power Supply: 6 to 16 VDC (7 W) |
General
Transmitter Mounting | 1 x 1/4"-20 Female |
Receiver Mounting | 1 x 1/4"-20 Female |
Transmitter Dimensions | 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm |
Receiver Dimensions | 4.3 x 2.8 x 1.32" / 11 x 7.2 x 3.35 cm |
Transmitter Weight | 0.5 lb / 206 g |
Receiver Weight | 0.5 lb / 206 g |
Packaging Info
Package Weight | 1.9 lb |
Box Dimensions (LxWxH) | 7.2 x 6 x 3" |
