Swit Antenna for FLOW 500

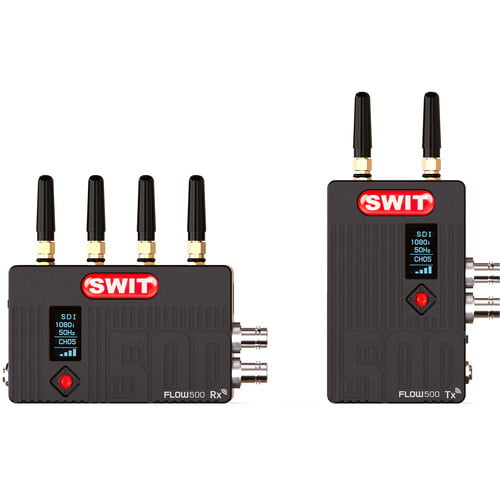

Swit FLOW500 (FLOW500) SDI and HDMI 150m (500ft) Wireless FHD Video Transmission System (1x Transmitter, 1x Receiver). KUWI Wireless Technology SDI&HDMI 500ft / 150m (LOS)
Input / Output |
|
| |
Transmitter |
|
| |
3G/HD-SDI input×1; loop out x1 | |
HDMI 1.3 input ×1 | |
Receiver | |
3G/HD-SDI output×2 | |
HDMI 1.3 output ×1 | |
Video Formats | |
SDI | 1080p60, 1080p59.94, 1080p50 |
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
1080psf23.98, 1080psf24 | |
1080i60, 1080i59.94, 1080i50; | |
720p60, 720p59.94, 720p50 | |
HDMI | 1080p60, 1080p59.94, 1080p50 |
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
1080psf23.98, 1080psf24 | |
1080i60, 1080i59.94, 1080i50; | |
720p60, 720p59.94, 720p50 | |
Wireless | |
Frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
RF Power | 128mW |
Transmission Distance | 500 feet / 150 meters (Line of sight) |
General | |
Input voltage | Transmitter DC 7-34V |
Reveiver DC 7-34V | |
Power Consumption | Transmitter 8W |
Reveiver 8W | |
Dimension(w/o antenna) | Transmitter 66×106.5×24.7 (mm) |
Reveiver 106.5×66×24.7 (mm) | |
Net weight | Transmitter 236g |
Reveiver 245g | |
Working Temperature | 0°C -+40°C |
