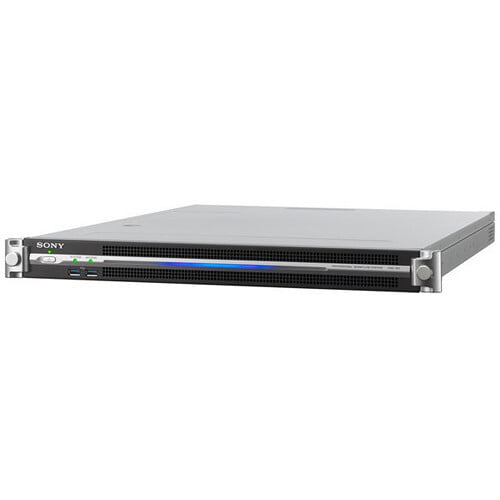

Sony Network RX Station for Select XDCAM Camcorders
The PWS-110RX1 network RX station is an advanced system for cost efficient live streaming video and audio direct from XDCAM camcorders using 4G/LTE and Wi-Fi networks. The PWS-110RX1 uses Sony’s unique QoS (quality of service) technology or MPEG2-TS to maintain video and audio integrity during transmission.
Compatible Cameras | PXW-Z450 / Z280 / Z190 / Z150 / Z90 |
Supported Formats | 1080p: 59.94, 50 |
Connectors | 2 x RJ45, LAN Port (1000BASE-T, 100BASE-TX) |
Memory | 2 x 8 GB SO-DIMM (DDR4) |
Storage (SSD) | 120 GB |
Expansion Bus Connector | 2 x PCIe Gen2 8Lane (8 W) |
CPU | Intel Core i7 6700TE (2.4 GHz) |
Power Requirements | 100 to 240 VAC, 50/60 Hz |
Power Consumption | Normal: 235 W |
Operating Temperature | 41 to 95°F / 5 to 35°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 20 to 90% |
Storage Humidity | 5 to 80% |
Dimensions | 17.3 x 17.2 x 20.0" / 44.0 x 43.6 x 50.7 cm |
Weight | 21.6 lb / 9.8 kg |
Packaging Info
Package Weight | 13.02 kg |
Box Dimensions (LxWxH) | 25.75 x 22 x 7.75" |
