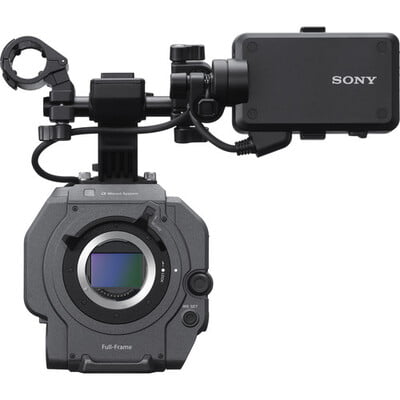

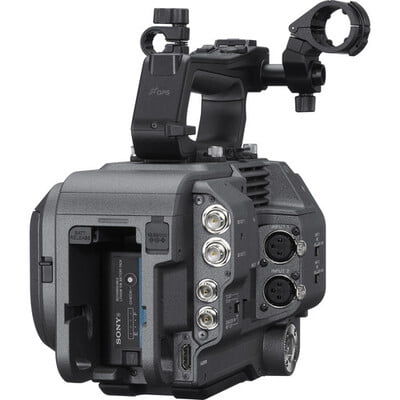

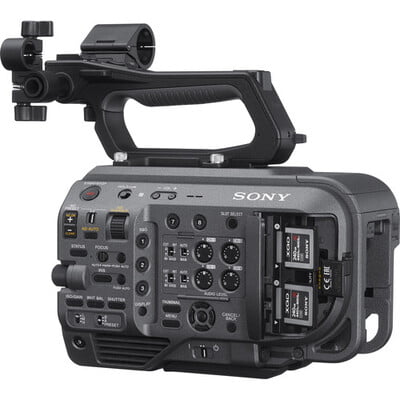

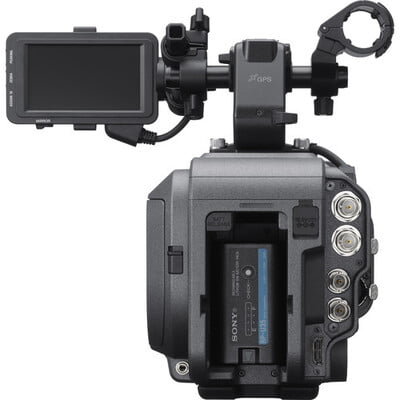

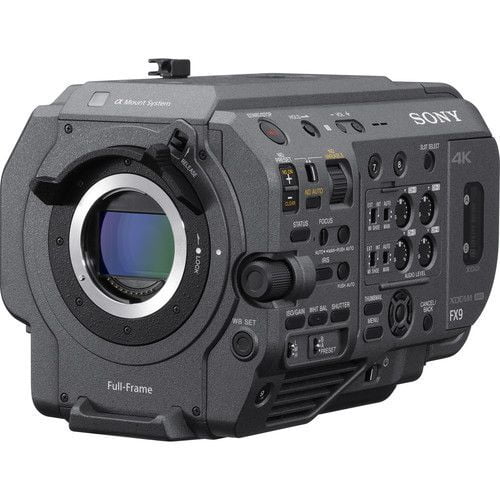

Sony PXW-FX9 XDCAM 6K Full-Frame Camera System

Image Sensor Size

35.7 x 18.8 mm (Full-Frame)

Sensor Type

CMOS

Sensor Resolution

Effective: 3840 x 2160

ISO

800 to 4000 (Native)

Gain

-3 to 18 dB

Advertised Dynamic Range

15 Stops

Signal-to-Noise Ratio

57 dB

Lens Mount

Sony E-Mount

Shutter Speed

1/1 to 1/8000 sec

Built-In ND Filter

4 to 128 Stop Electronic ND Filter

Built-In Microphone Type

Mono

Recording Media

2 x XQD Card Slots
1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot

Variable Frame Rates

1 to 180 fps

Recording Modes

XAVC-I 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps (89 to 222 Mb/s)
1920 x 1080i at 50/59.94 fps (112 Mb/s)
XAVC-L 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 25/29.97/50/59.94/100/120 fps (25 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
MPEG HD422 4:2:2 10-Bit:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1920 x 1080i at 25/50/59.94 fps (50 Mb/s)
XAVC Proxy 4:2:0 10-Bit:
1920 x 1080p (9 Mb/s)
1280 x 720p (6 to 9 Mb/s)
640 x 360p (3 Mb/s)

Gamma Curve

Sony S-Log 3

Audio Recording

XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
Proxy: 2-Channel AAC Audio

Video Connectors

1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Genlock Data Input
1 x BNC Timecode Data Input/Output
1 x 2.5 mm LANC Control
1 x USB Micro-B USB 3.1 Gen 1 Data

Wireless Interfaces

2.4 GHz, 5 GHz Wi-Fi

EVF

Included

EVF Display Type

LCD

Screen Size

3.5"

EVF Resolution

2,760,000 Dots

Battery Type

Sony BP-U Series

Power Connectors

1 x Barrel (19.5 VDC) Input

Power Consumption

35.2 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

1 x Multi-Interface Shoe
1 x 1/4"-20 Female

Dimensions

5.75 x 5.61 x 9.02" / 146 x 142.5 x 229 mm (Without Protrusions)

Weight

4.4 lb / 2 kg

Package Weight

18 lb

Box Dimensions (LxWxH)

60 x 20 x 13"
